3059744 | Phoenix Contact

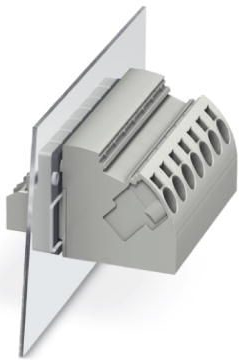

Feed through terminal, 1 pole, 0.2-4.0 mm², clamping points: 2, gray, push-in spring connection, 32 A, 3059744
Unit Price (€ / pc.)
1.7731 € *
Available: 0 pcs.
Leadtime: 8 Weeks **
Total Price:
1.77 € *
Price list
Quantity
Price per unit*
1 pcs.
1.7731 €
10 pcs.
1.6303 €
50 pcs.
1.4875 €
100 pcs.
1.3328 €
*incl. VAT plus shipping costs
**Subject to prior sale
Terminal block, 3059744, Phoenix Contact

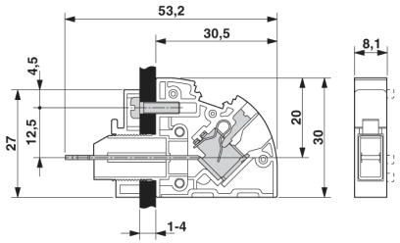

Panel feed-through terminal block, connection method: push-in spring connection, solder connection, number of positions: 1, load current: 32 A, cross section: 0.2 mm² - 4 mm², connection direction of the conductor to plug-in direction: 45 °, width: 8.1 mm.
Features
- Time saving push-in connection, tools not required
- Defined contact force ensures that contact remains stable over the long term

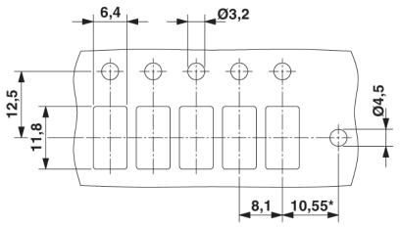

- Automatic panel thickness compensation enables universal use
- Tool-free snap-in principle enables easy mounting on the device panel
Technical specifications
| Version | Durchführungsklemme | |
| Pin number | 1-polig | |
| Cable cross-section | 0,2-4,0 mm² | |
| Number of terminals | 2 | |
| Colour | grau | |
| Connection | Push-in-Federanschluss | |
| Rated current | 32 A | |
| AWG cross-section | AWG 24-12 |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
