3059757 | Phoenix Contact

Feed through terminal, 1 pole, 0.2-6.0 mm², clamping points: 2, gray, screw connection, 32 A, 3059757

Order No.: 60P6048
EAN: 4046356520751
MPN:
3059757
UW 4-POT-SL
Series: UW

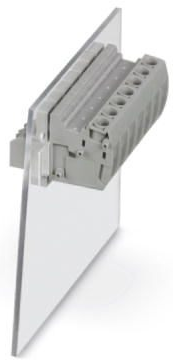

3059757 Phoenix Contact Terminal Blocks Image 1
3059757 Phoenix Contact Terminal Blocks Image 2
3059757 Phoenix Contact Terminal Blocks Image 3
Image may differ
Unit Price (€ / pc.)
1.5827 € *
Available: 0 pcs.
Available in 10 days: 100 pcs.
Leadtime: 1 Week **
Total Price:
1.58 € *
Price list
Quantity
Price per unit*
1 pcs.
1.5827 €
10 pcs.
1.4518 €
50 pcs.
1.3209 €
100 pcs.
1.1900 €
*incl. VAT plus shipping costs
**Subject to prior sale

Terminal block, 3059757, Phoenix Contact

Panel feed-through terminal block, connection method: screw connection with tension sleeve, solder connection, number of positions: 1, load current: 32 A, cross section: 0.2 mm² - 6 mm², connection direction of the conductor to plug-in direction: 0 °, width: 8.1 mm.

Features

  • Well-known connection principle allows worldwide use
  • Low temperature rise, thanks to maximum contact force
  • Automatic panel thickness compensation enables universal use
  • Tool-free snap-in principle enables easy mounting on the device panel
Technical specifications
Anschluss Schraubanschluss
Anzahl der Klemmstellen 2
Ausführung Durchführungsklemme
AWG-Leiterquerschnitt AWG 24-10
Farbe grau
Leiterquerschnitt 0,2-6,0 mm²
Nennstrom 32 A
Polzahl 1-polig
Logistics
Ursprungsland CN
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
