3073513 | Phoenix Contact

Feed through terminal, 1 pole, 6.0-35 mm², clamping points: 2, gray, screw connection, 101 A, 3073513

Order No.: 60P6042
EAN: 4046356344685
MPN:
3073513
UW 25-POT/S
Series: UW

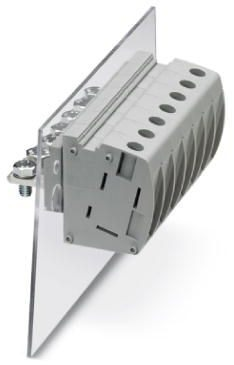

3073513 Phoenix Contact Terminal Blocks Image 1
3073513 Phoenix Contact Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
8.6037 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
Total Price:
8.60 € *
Price list
Quantity
Price per unit*
1 pcs.
8.6037 €
10 pcs.
7.9135 €
50 pcs.
7.1995 €
100 pcs.
6.4855 €
*incl. VAT plus shipping costs
**Subject to prior sale

Terminal block, 3073513, Phoenix Contact

Panel feed-through terminal block, connection method: screw connection with tension sleeve, cable lug connection, number of positions: 1, load current: 101 A, cross section: 6 mm² - 35 mm², connection direction of the conductor to plug-in direction: 0 °, width: 15.1 mm.

Features

  • Well-known connection principle allows worldwide use
  • Low temperature rise, thanks to maximum contact force
  • Tool-free snap-in principle enables easy mounting on the device panel
  • Automatic panel thickness compensation enables universal use
Technical specifications
Anschluss Schraubanschluss
Anzahl der Klemmstellen 2
Ausführung Durchführungsklemme
AWG-Leiterquerschnitt AWG 10-2
Farbe grau
Leiterquerschnitt 6,0-35 mm²
Nennstrom 101 A
Polzahl 1-polig
Logistics
Ursprungsland CN
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
