3073526 | Phoenix Contact
Feed through terminal, 1 pole, 0.5-16 mm², clamping points: 2, gray, screw connection, 57 A, 3073526
Unit Price (€ / pc.)
3.8437 € *
Available: 0 pcs.
Available in 10 days: 50 pcs.
Leadtime: 1 Week **

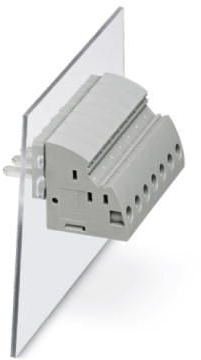

Terminal block, 3073526, Phoenix Contact

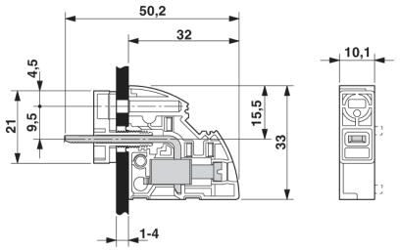

Panel feed-through terminal block, connection method: screw connection with tension sleeve, solder connection, number of positions: 1, load current: 57 A, cross section: 0.5 mm² - 16 mm², connection direction of the conductor to plug-in direction: - 90 °, width: 10.1 mm.
Features
- Well-known connection principle allows worldwide use
- Low temperature rise, thanks to maximum contact force
- Tool-free snap-in principle enables easy mounting on the device panel
- Automatic panel thickness compensation enables universal use
Technical specifications
| Anschluss | Schraubanschluss | |
| Anzahl der Klemmstellen | 2 | |
| Ausführung | Durchführungsklemme | |
| AWG-Leiterquerschnitt | AWG 20-6 | |
| Farbe | grau | |
| Leiterquerschnitt | 0,5-16 mm² | |
| Nennstrom | 57 A | |
| Polzahl | 1-polig |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
