3036797 | Phoenix Contact

Component plug for terminal block, 3036797

Order No.: 60P1976
EAN: 4055626042930
MPN:
3036797
P-CO XL
Series: P-CO

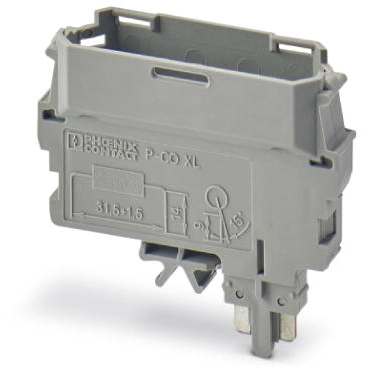

3036797 Phoenix Contact Terminals Accessories Image 1
3036797 Phoenix Contact Terminals Accessories Image 2
Image may differ
Unit Price (€ / pc.)
10.3173 € *
Available: 0 pcs.
Available in 10 days: 820 pcs.
Leadtime: 1 Week **
Total Price:
10.32 € *
Price list
Quantity
Price per unit*
1 pcs.
10.3173 €
10 pcs.
9.4962 €
50 pcs.
8.6394 €
100 pcs.
7.7826 €
*incl. VAT plus shipping costs
**Subject to prior sale

Component connector, 3036797, Phoenix Contact

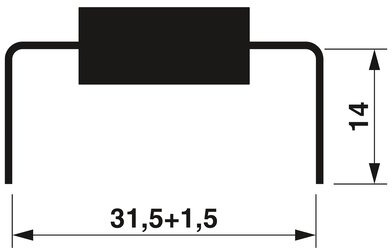

Component connector for installing components that can be individually selected up to a diameter of 10 mm and power dissipation of up to 1 W, Nominal current: 10 A, Length: 41.2 mm, Width: 12.3 mm, Height: 37.5 mm, Number of positions: 1, Color: gray

Features

  • Suitable for discreet components with high power dissipation
  • Solderless spring-cage connection
  • Suitable for use in all terminal blocks with a separation zone and a central marking groove (-TG)
  • Tested for railway applications
Technical specifications
Geeignet für Reihenklemme
Zubehörart Bauelementestecker
Logistics
Ursprungsland PL
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
