3045509 | Phoenix Contact
Plug, 11 pole, 0.14-4.0 mm², gray for space-saving potential distribution, 3045509
Unit Price (€ / pc.)
13.4113 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
13.41 € *
Price list
Quantity
Price per unit*
1 pcs.
13.4113 €
10 pcs.
12.3403 €
50 pcs.
11.2217 €
100 pcs.
10.1031 €
*incl. VAT plus shipping costs
**Subject to prior sale

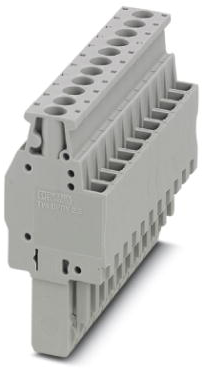

Plug, 3045509, Phoenix Contact
Plug, rated voltage: 500 V, nominal current: 24 A, number of positions: 11, connection method: Screw connection, Rated cross section: 2.5 mm², cross section: 0.14 mm² - 4 mm², color: gray.
Features
- Can be bridged with FBS standard bridges
- Large-surface labeling option
- Practical coding option
- The connected conductors can be led directly into the cable duct to save space
Technical specifications
| Ausführung | 11-polig, 0,14-4,0 mm², grau | |
| Geeignet für | platzsparende Potenzialverteilung | |
| Zubehörart | Stecker |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
