3260154 | Phoenix Contact
Pick off terminal block, 57 A, 1500 V, 3260154, AGK 10-PTPOWER BK/YE
Unit Price (€ / pc.)
4.5339 € *
Available: 0 pcs.
Available in 10 days: 9 pcs.
Leadtime: 1 Week **
Total Price:
4.53 € *
Price list
Quantity
Price per unit*
1 pcs.
4.5339 €
10 pcs.
4.1769 €
50 pcs.
3.7961 €
100 pcs.
3.4153 €
*incl. VAT plus shipping costs
**Subject to prior sale

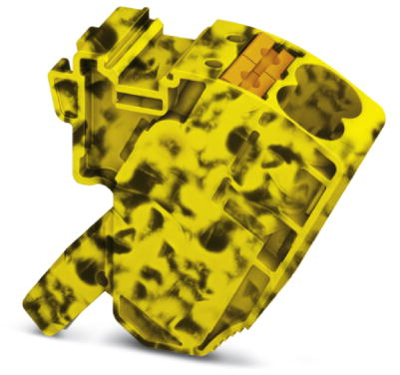

Pick-off terminal block, 3260154, Phoenix Contact
Pick-off terminal block for use with PTPOWER 50, 95, 150, and 185 PowerTurn high-current terminal blocks, Nominal voltage: 1500 V, Nominal current: 57 A, Connection method: Push-in connection, 1 level, Rated cross section: 10 mm², Cross section: 0.5-16 mm², Mounting type: on base element, Color: black/yellow.
Features
- Large-surface marking
- The fully insulated, optional use pick-off terminal block enables voltage pick-off
- Pick-off terminal block, for snapping into the lateral guide
Technical specifications
| Anschluss | Push-in-Anschluss | |
| Ausführung | Abgriffklemme | |
| Breite | 18.5 mm | |
| Höhe | 34.7 mm | |
| Länge | 35 mm | |
| Nennspannung | 1500 V | |
| Nennstrom | 57 A |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
