1200106 | Phoenix Contact
Insulated wire end ferrule, 1.0 mm², 14 mm/8 mm long, DIN 46228/4, red, 1200106
Unit Price (€ / pc.)
0.0440 € *
Available: 0 pcs.
Available in 10 days: 81,000 pcs.
Leadtime: 2 Weeks **
Ferrule, 1200106, Phoenix Contact

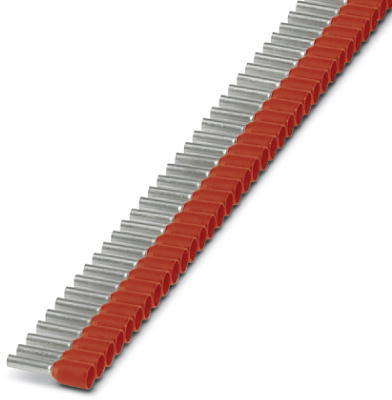

Taped ferrule, 1.0 mm², sleeve length 8 mm, with plastic collar, according to DIN 46228-4, red, for processing with the CRIMPFOX 4 IN 1, 10 strips each with 50 sleeves per strip.
Technical specifications
| Colour | red | |
| Material Insulation | polypropylene | |
| Isolated | Yes | |
| Contact material | copper | |
| Length | 14 mm | |
| Cable cross-section | 1.0 mm² | |
| max. operating temperature | 105 °C | |
| Standard number | DIN 46228/4 | |
| Pin lenght | 8 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
