3200506 | Phoenix Contact

Insulated wire end ferrule, 0.5 mm², 18 mm/12 mm long, NF C 63-023, white, 3200506

Order No.: 60P6317
EAN: 4017918094119
MPN:
3200506
AI 0,5 -12 WH
Series: AI
3200506 Phoenix Contact Wire-end Ferrules
Image may differ
Unit Price (€ / pc.)
0.1023 € *
Available: 0 pcs.
Available in 10 days: 40,300 pcs.
Leadtime: 1 Week **
Total Price:
10.23 € *
*incl. VAT plus shipping costs
**Subject to prior sale
100 pcs.
0.1023 €

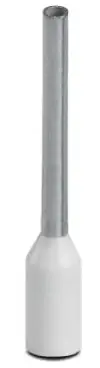

Ferrule, 3200506, Phoenix Contact

Ferrule, sleeve length: 12 mm, length: 18 mm, color: white. The ferrule's plastic sleeve is made from soft tin-plated electrolytic copper.

Features

  • The insulation reliability of close connections is increased and the splicing of wires is prevented
  • The AI 0,25.. ferrule can also be used to process 0.14 mm² conductors
Technical specifications
Farbe weiß
Isolationsmaterial Polypropylen
Isoliert Yes
Kontaktmaterial Kupfer
Länge 18 mm
Leiterquerschnitt 0,5 mm²
max. Temperatur 105 °C
Norm NF C 63-023
Pinlänge 12 mm
Logistics
Ursprungsland DE
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
