3200519 | Phoenix Contact
Insulated wire end ferrule, 0.75 mm², 14 mm/8 mm long, DIN 46228/4, gray, 3200519
Unit Price (€ / pc.)
0.0321 € *
Available: 1,000 pcs.
Available in 10 days: 394,700 pcs.
Leadtime: 2 Weeks **
Total Price:
3.21 € *
Price list
Quantity
Price per unit*
100 pcs.
0.0321 €
500 pcs.
0.0286 €
1000 pcs.
0.0250 €
*incl. VAT plus shipping costs
**Subject to prior sale

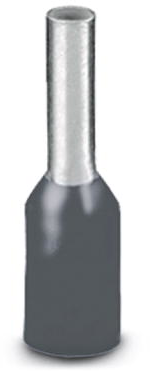

Ferrule, 3200519, Phoenix Contact
Ferrule, sleeve length: 8 mm, length: 14 mm, color: gray. The ferrule's plastic sleeve is made from soft tin-plated electrolytic copper.
Features
- The insulation reliability of close connections is increased and the splicing of wires is prevented
- The AI 0,25.. ferrule can also be used to process 0.14 mm² conductors
Technical specifications
| Colour | gray | |
| Material Insulation | polypropylene | |
| Isolated | Yes | |
| Contact material | copper | |
| Length | 14 mm | |
| Cable cross-section | 0.75 mm² | |
| max. operating temperature | 105 °C | |
| Standard number | DIN 46228/4 | |
| Pin lenght | 8 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
