3200726 | Phoenix Contact
Insulated wire end ferrule, 50 mm², 40 mm/25 mm long, DIN 46228/4, blue, 3200726
Unit Price (€ / pc.)
0.5831 € *
Available: 0 pcs.
Available in 10 days: 2,625 pcs.
Leadtime: 2 Weeks **

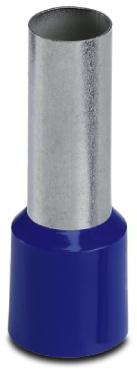

Ferrule, 3200726, Phoenix Contact
Ferrule, sleeve length: 25 mm, length: 40 mm, color: blue. The ferrule's plastic sleeve is made from soft tin-plated electrolytic copper.
Features
- The insulation reliability of close connections is increased and the splicing of wires is prevented
- The AI 0,25.. ferrule can also be used to process 0.14 mm² conductors
Technical specifications
| Colour | blue | |
| Material Insulation | polypropylene | |
| Isolated | Yes | |
| Contact material | copper | |
| Length | 40 mm | |
| Cable cross-section | 50 mm² | |
| max. operating temperature | 105 °C | |
| Standard number | DIN 46228/4 | |
| Pin lenght | 25 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
