MS-214-3-10500 | PIC GmbH

Reed sensor, 1 Form A (N/O), 10 W, 180 V (DC), 0.7 A, MS-214-3-10500

Order No.: 30G4760
EAN: 4099889449105
MPN:
MS-214-3-10500
PIC GmbH

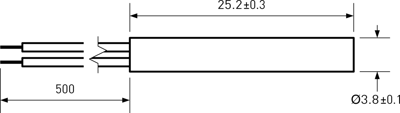

MS-214-3-10500 PIC GmbH Proximity Switches, Reed switches Image 1

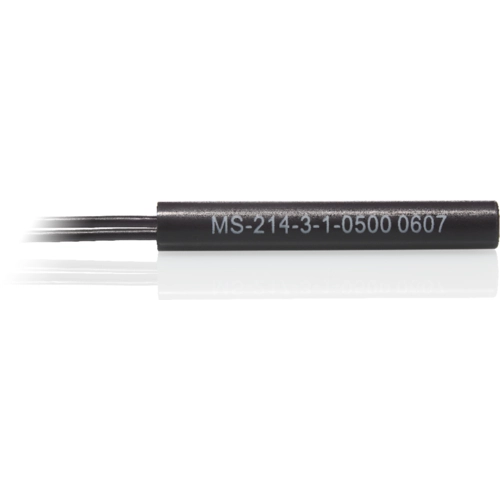

MS-214-3-10500 PIC GmbH Proximity Switches, Reed switches Image 2
Image may differ
Unit Price (€ / pc.)
2.3324 € *
Available: 0 pcs.
Leadtime: 14 Weeks **
Total Price:
2.33 € *
*incl. VAT plus shipping costs
**Subject to prior sale
500 pcs.
2.3324 €

Reed sensor, MS-214-3-10500, PIC GmbH

The MS-214-3-10500 is a small size ultraminiature reed sensor with different magnetic sensitivity ranges.

Applications

  • Position control
  • Non touch switching
Technical specifications
Connection stranded wires
Version reed sensor
diameter 3.8 mm
Length 25.2 mm
Latching switching function 1 Form A (N/O)
Breaking capacity 10 W
Switching Voltage (AC) 130 V
Switching Voltage (DC) 180 V
switching current 0.7 A
Contact resistance 300 mΩ
Logistics
Country of origin CN
Customs tariff number 85365080
MSL MSL 1
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
