MS-328-4-1-0500 | PIC GmbH
Reed sensor, 1 Form C (NO/NC), 5 W, 175 V (DC), 0.25 A, MS-328-4-1-0500
Order No.: 30G4706
EAN: 4099889448849
MPN:
MS-328-4-1-0500
Unit Price (€ / pc.)
6.6402 € *
Available: 79 pcs.
Leadtime: 14 Weeks **
Total Price:
6.64 € *
Price list
Quantity
Price per unit*
1 pcs.
6.6402 €
10 pcs.
5.8429 €
100 pcs.
5.1289 €
250 pcs.
4.9266 €
1000 pcs.
4.6172 €
*incl. VAT plus shipping costs
**Subject to prior sale

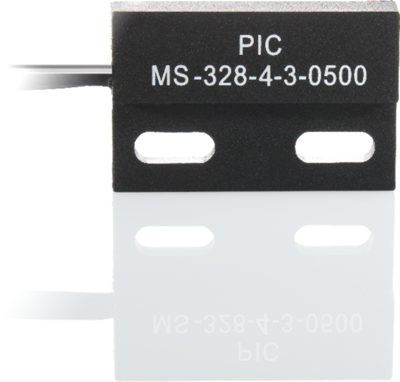

Reedsensor, MS-328-4-1-0500, PIC GmbH

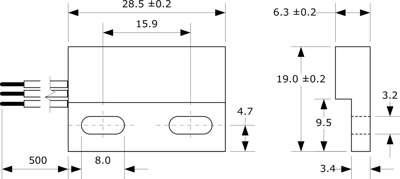

Reedsensor with a length of 28.5 mm, switching current 0.25 A, breaking capacity 5 W
Technical specifications
| Connection | cable connection | |
| Version | reed sensor | |
| Length | 28.5 mm | |
| Latching switching function | 1 Form C (NO/NC) | |
| Breaking capacity | 5 W | |
| Switching Voltage (AC) | 120 V | |
| Switching Voltage (DC) | 175 V | |
| switching current | 0.25 A | |
| Contact resistance | 150 mΩ |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85365080 |
| MSL | MSL 1 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
