PT 15 LV 100K | Piher

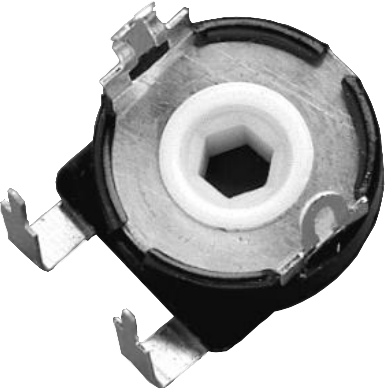

Layered trimmer potentiometer, 100 kΩ, 0.25 W, THT, on top, PT 15 LV 100K
Unit Price (€ / pc.)
0.3332 € *
Available: 0 pcs.
Available in 4 Days: 1,250 pcs.
Leadtime: 9 Weeks **
Trimmer potentiometer, PT 15 LV 100K,Piher
Potentiometer features a 15 mm resistive element made of carbon. Housed in a dust-proof enclosure and has a polyester substrate.
Technical specifications
| ohmscher Widerstand | 100 kΩ | |
| Anschluss | Lötstift | |
| Ausführung | Schicht-Trimmpotentiometer | |
| Breite | 7 mm | |
| Drehbereich (elektrisch) | 240 ° | |
| Drehbereich (mechanisch) | 265 ° | |
| Einstellung | oben | |
| Kontaktabstand | RM 12,5/10 | |
| Länge | 15 mm | |
| Leistung | 0.25 W | |
| max. Temperatur | 70 °C | |
| min. Temperatur | -25 °C | |
| Montage | THT | |
| Toleranz | ±20 % | |
| Temperaturkoeffizient | ±300 ppm/K | |
| Widerstandsverlauf | linear |
Download
Logistics
| Ursprungsland | ES |
| Zolltarifnummer | 85334010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
