PT 15 NH 1M0 | Piher

Layered trimmer potentiometer, 1 MΩ, 0.25 W, THT, lateral, PT 15 NH 1M0

Order No.: 66E514
EAN: 4099879889928
MPN:
PT 15 NH 1M0
PT15NH05-105A2020--S
Series: PT15
Piher

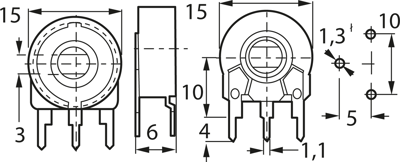

PT 15 NH 1M0 Piher Trimmer Potentiometers Image 1

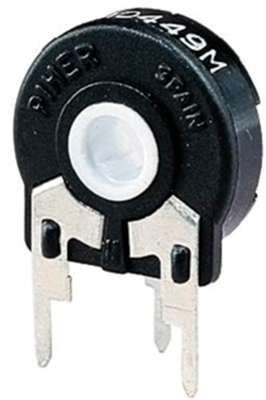

PT 15 NH 1M0 Piher Trimmer Potentiometers Image 2
Image may differ
Print
Key Specification:
Version layered trimmer potentiometer
ohmic resistance 1 MΩ
Tolerance ±20 %
Power 0.25 W
Assembly THT

Ordering Information:

Supplied without quick-release shaft and knurled knobs, please order these separately
Show 12 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
0.3332 € *
Available: 0 pcs.
Available in 4 Days: 200 pcs.
Leadtime: 9 Weeks **
Add to Cart
Total Price:
0.33 € *
*incl. VAT plus shipping costs
**Subject to prior sale
400 pcs.
0.3332 €
Description
Technical specifications
Download
Logistics
Compliance
Accessory
Variations

Trimmer potentiometer, PT 15 NH 1M0,Piher

Potentiometer features a 15 mm resistive element made of carbon. Housed in a dust-proof enclosure and has a polyester substrate.
Technical specifications
ohmic resistance 1 MΩ
Connection solder pin
Version layered trimmer potentiometer
Width 6 mm
Rotary range, electrical 240 °
Mechanic rotary range 265 °
Seeting lateral
Contact distance RM 10/5
Length 15 mm
Power 0.25 W
max. operating temperature 70 °C
min. operating temperature -25 °C
Assembly THT
Tolerance ±20 %
Temperature coefficient ±300 ppm/K
Track Taper linear
Show similar products 0
Logistics
Country of origin ES
Customs tariff number 85334010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
