PT 6 K V 502 A | Piher

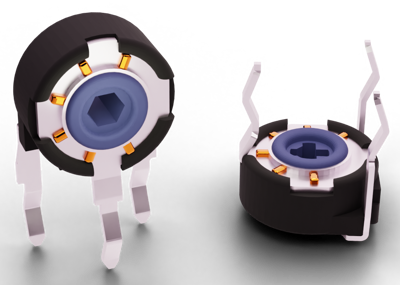

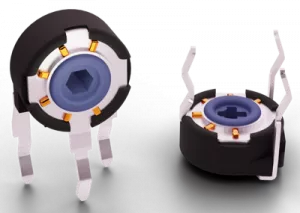

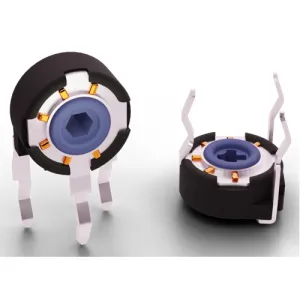

Trimmer potentiometer, PT 6 K V 502 A,Piher

Trimmer potentiometer is a carbon through-hole component with a diameter of 6 mm. Designed for automatic insertion in magazines packaging. The wiper of the potentiometer can be positioned at the initial, 50 % or fully clockwise positions. It has a single-pole, double-throw (SPDT) switch function. The potentiometer offers linear, logarithmic, and antilogarithmic tapers for different applications. It is the only 6 mm miniature trimmer potentiometer with optional stop positions for haptic feedback.

Features

• Excellent performance
• Up to 10.000 life cycles
• Polyester substrate
• Loose and assembled shaft and knobs
• Up to 10 mechanical detents

Applications

• Appliance program selection
• Thermostat adjustment
• Timer and control relays
• Consumer electronics
• Power tool controls
• Test and measurement equipment
