PTC 10 LV 250R | Piher
Cermet trimmer potentiometer, 250 Ω, 0.33 W, THT, on top, PTC 10 LV 250R
Unit Price (€ / pc.)
2.3086 € *
Available: 524 pcs.
Leadtime: On Request **
Total Price:
2.31 € *
Price list
Quantity
Price per unit*
1 pcs.
2.3086 €
10 pcs.
1.4399 €
50 pcs.
1.2614 €
250 pcs.
1.0948 €
1000 pcs.
0.9639 €
*incl. VAT plus shipping costs
**Subject to prior sale

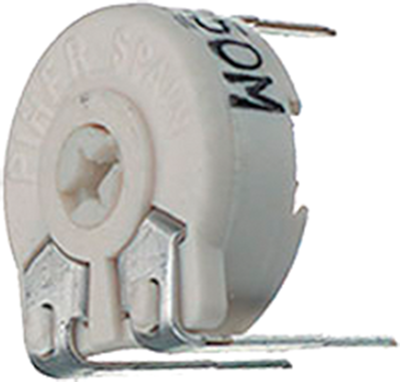

Trimmer potentiometer, PTC 10 LV 250R,Piher
The PTC-10 potentiometer offers control where frequent adjustment is required. The shaftless design allows for employment of different engagement mechanisms, such as a customized shaft, a motor control or a human interface adjustment. This potentiometer can also control variable outputs including frequency, change in motor speed or volume.
Features
- Excellent performance
- Cermet resistive element
- Up to 16 mechanical detents for tactile feedback
- Up to 100.000 life cycles
- Wiper positioned at initial, 50 % or fully clockwise
Applications
- Appliance program selection
- Thermostat adjustment
- Timer and control relays
- Consumer electronics
- Power tool controls
- Test and measurement equipment

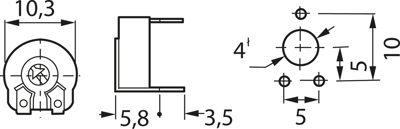

Technical specifications
| ohmic resistance | 250 Ω | |
| Connection | solder pin | |
| Version | cermet trimmer potentiometer | |
| Width | 5 mm | |
| Rotary range, electrical | 220 ° | |
| Mechanic rotary range | 235 ° | |
| Seeting | on top | |
| Contact distance | RM 5/10 | |
| Length | 10 mm | |
| Power | 0.33 W | |
| max. number of revolutions | 1 | |
| max. operating temperature | 90 °C | |
| min. operating temperature | -40 °C | |
| Assembly | THT | |
| Tolerance | ±20 % | |
| Temperature coefficient | ±100 ppm/K | |
| Track Taper | linear |
Download
Logistics
| Country of origin | ES |
| Customs tariff number | 85334010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
