PTC 15 LH 50K | Piher

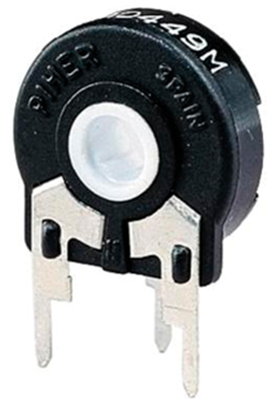

Cermet trimmer potentiometer, 50 kΩ, 0.5 W, THT, lateral, PTC 15 LH 50K
Unit Price (€ / pc.)
2.8560 € *
Available: 2,896 pcs.
Leadtime: On Request **
Total Price:
2.86 € *
Price list
Quantity
Price per unit*
1 pcs.
2.8560 €
10 pcs.
1.7850 €
50 pcs.
1.5589 €
250 pcs.
1.3566 €
1000 pcs.
1.1781 €
*incl. VAT plus shipping costs
**Subject to prior sale
Trimmer potentiometer, PTC 15 LH 50K,Piher
The PTC-15 potentiometer offers control where frequent adjustment is required. The shaftless design allows for employment of different engagement mechanisms, such as a customized shaft, a motor control or a human interface adjustment. This potentiometer can also control variable outputs including frequency, change in motor speed or volume.
Features
- Excellent performance
- Cermet resistive element
- Up to 38 mechanical detents for tactile feedback
- Up to 100.000 life cycles
- Wiper positioned at initial, 50 % or fully clockwise
Applications
- Appliance program selection
- Thermostat adjustment
- Timer and control relays
- Consumer electronics
- Power tool controls
- Test and measurement equipment

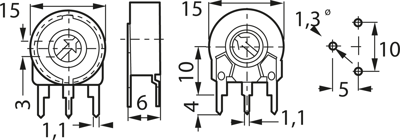

Technical specifications
| ohmic resistance | 50 kΩ | |
| Connection | solder pin | |
| Version | cermet trimmer potentiometer | |
| Width | 6 mm | |
| Rotary range, electrical | 240 ° | |
| Mechanic rotary range | 265 ° | |
| Seeting | lateral | |
| Contact distance | RM 5/10 | |
| Length | 15 mm | |
| Power | 0.5 W | |
| max. number of revolutions | 1 | |
| max. operating temperature | 90 °C | |
| min. operating temperature | -40 °C | |
| Assembly | THT | |
| Tolerance | ±10 % | |
| Temperature coefficient | ±100 ppm/K | |
| Track Taper | linear |
Download
Logistics
| Country of origin | ES |
| Customs tariff number | 85334010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
