PTC 15 LV 1M0 | Piher
Cermet trimmer potentiometer, 1 MΩ, 0.5 W, THT, on top, PTC 15 LV 1M0
Unit Price (€ / pc.)
1.071 € *
Available: 0 pcs.
Leadtime: 13 Weeks **

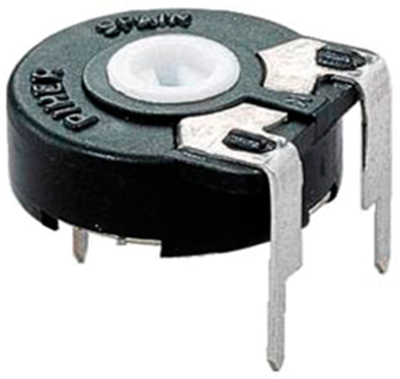

Trimmer potentiometer, PTC 15 LV 1M0,Piher
The PTC-15 potentiometer offers control where frequent adjustment is required. The shaftless design allows for employment of different engagement mechanisms, such as a customized shaft, a motor control or a human interface adjustment. This potentiometer can also control variable outputs including frequency, change in motor speed or volume.
Features
- Excellent performance
- Cermet resistive element
- Up to 38 mechanical detents for tactile feedback
- Up to 100.000 life cycles
- Wiper positioned at initial, 50 % or fully clockwise
Applications
- Appliance program selection
- Thermostat adjustment
- Timer and control relays
- Consumer electronics
- Power tool controls
- Test and measurement equipment

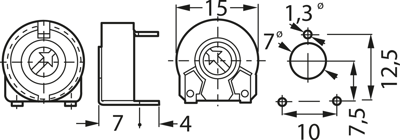

Technical specifications
| ohmscher Widerstand | 1 MΩ | |
| Anschluss | Lötstift | |
| Ausführung | Cermet-Trimmpotentiometer | |
| Breite | 7 mm | |
| Drehbereich (elektrisch) | 240 ° | |
| Drehbereich (mechanisch) | 265 ° | |
| Einstellung | oben | |
| Kontaktabstand | RM 10/12,5 | |
| Länge | 15 mm | |
| Leistung | 0.5 W | |
| max. Anzahl der Umdrehungen | 1 | |
| max. Temperatur | 90 °C | |
| min. Temperatur | -40 °C | |
| Montage | THT | |
| Toleranz | ±20 % | |
| Temperaturkoeffizient | ±100 ppm/K | |
| Widerstandsverlauf | linear |
Download
Logistics
| Ursprungsland | ES |
| Zolltarifnummer | 85334010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
