PCX2339L61225 | PILKOR
MKP suppression capacitor, 2.2 µF, ±10 %, 305 V (AC), PP, 27.5 mm, PCX2339L61225
Unit Price (€ / pc.)
1.7374 € *
Available: 0 pcs.
Leadtime: 27 Weeks **
Total Price:
1.74 € *
Price list
Quantity
Price per unit*
1 pcs.
1.7374 €
10 pcs.
1.0829 €
50 pcs.
0.9520 €
250 pcs.
0.8211 €
1000 pcs.
0.7259 €
*incl. VAT plus shipping costs
**Subject to prior sale

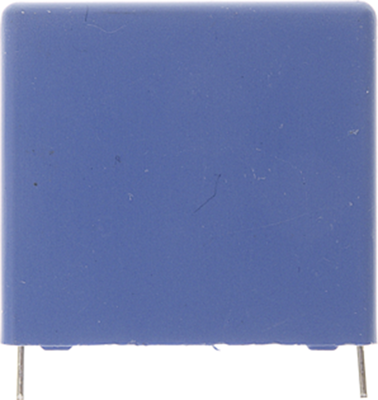

Suppression capacitor, type Pilkor PCX2 339.
X2 capacitor, with polypropylene (MKP) dielectric
Technical specifications
| Number of pins | 2 | |
| Design | radial | |
| Width | 15 mm | |
| Dielectric material | PP | |
| Interference suppression class | X2 | |
| Height | 25 mm | |
| Capacity | 2.2 µF | |
| Length | 31 mm | |
| max. operating temperature | 110 °C | |
| min. operating temperature | -55 °C | |
| Rated voltage (AC) | 305 V | |
| Grid | 27.5 mm | |
| Tolerance | ±10 % |
Download
Logistics
| Country of origin | KR |
| Customs tariff number | 85322500 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
