1-1393250-9 | Potter & Brumfield
Thermal circuit breaker, 1 pole, 0.25 mA, 32 V (DC), 250 V (AC), faston plug 6.35 mm, panel mounting, 1-1393250-9
Unit Price (€ / pc.)
10.6624 € *
Available: 0 pcs.
Available in 5 Days: 152 pcs.
Leadtime: 22 Weeks **
Total Price:
10.66 € *
Price list
Quantity
Price per unit*
10 pcs.
10.6624 €
50 pcs.
8.8298 €
*incl. VAT plus shipping costs
**Subject to prior sale

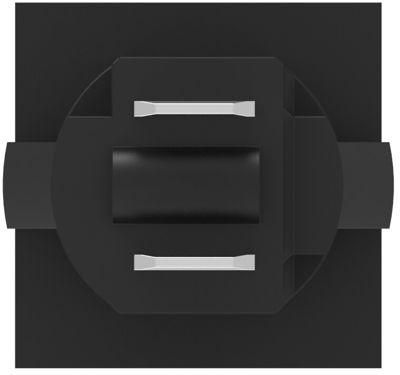

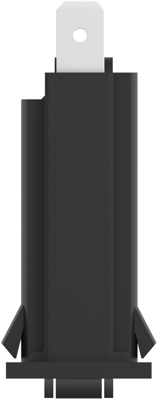

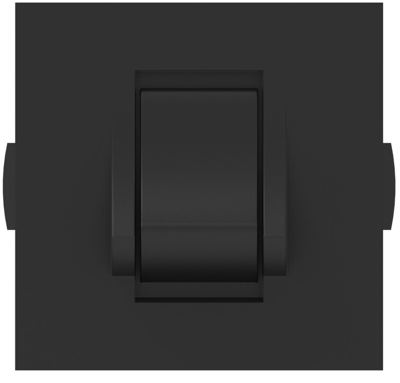

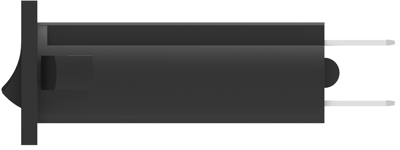

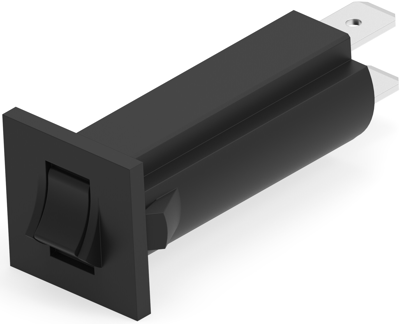

Thermal circuit breaker, 1-1393250-9, Potter & Brumfield
Circuit breaker, Thermal, Series trip, Black, Operating Voltage 250 VAC, Operating Voltage 32 VDC, 0.25A Current Rating.
Features
- Single pole fuseholder type
- Push to reset
- Replaces slow blow glass cartridge fuse
- Labor-saving snap-in mounting
- Button extends for visual trip indication
Technical specifications
| Connection | faston plug 6.35 mm | |
| Type of mounting | panel mounting | |
| Actuator | Push actuator | |
| Rated voltage (AC) | 250 V | |
| Rated voltage (DC) | 32 V | |
| Rated current | 0.25 mA | |
| Pin number | 1 pole |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85362010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
