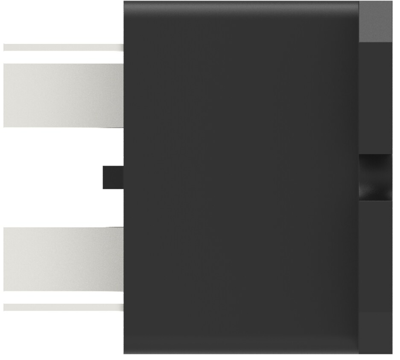

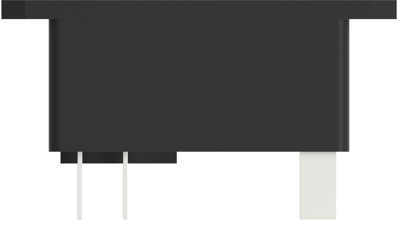

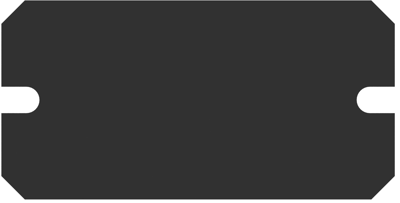

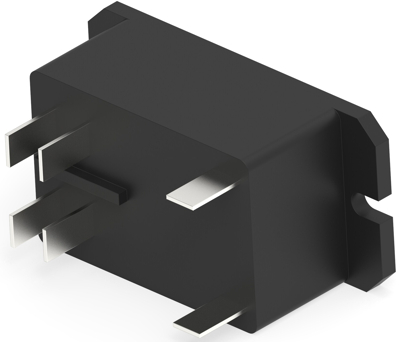

1-1393212-4 | Potter & Brumfield
Relay, 2 Form A (N/O), 12 V (DC), 86 Ω, 30 A, 600 V (AC), monostable, 1-1393212-4
Unit Price (€ / pc.)
19.7302 € *
Available: 0 pcs.
Available in 5 Days: 1,476 pcs.
Leadtime: 24 Weeks **
Power relay, 1-1393212-4, Potter & Brumfield
Power relay, Standard, Monostable, DC, 1700 mW Coil Power Rating DC, 86 Ω Coil Resistance, UL Coil Insulation Class F.
Features
- Designed to control compressor loads
- Printed circuit board mount
- Wash-tight, tape sealed, plastic case
- Meets requirements of UL Class F construction
Applications
- Residential / commercial appliances
- Industrial Control
- Charging
- HVAC
Technical specifications
| Connection | faston plug | |
| Contact type | 2 Form A (N/O) | |
| Contact material | AgCdO | |
| Switching Voltage (AC) | 600 V | |
| switching current | 30 A | |
| Coil voltage (DC) | 12 V | |
| Coil type | monostable | |
| Coil resistance | 86 Ω |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85364110 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Cadmium oxide |
