1-1393771-1 | Potter & Brumfield
Relay, 1 Form B (N/C), 6 V (DC), 500 Ω, 0.5 A, 100 V (DC), monostable, 1-1393771-1
Unit Price (€ / pc.)
10.2459 € *
Available: 0 pcs.
Available in 5 Days: 1,110 pcs.
Leadtime: 96 Weeks **
Total Price:
10.25 € *
Price list
Quantity
Price per unit*
25 pcs.
10.2459 €
50 pcs.
10.0555 €
*incl. VAT plus shipping costs
**Subject to prior sale

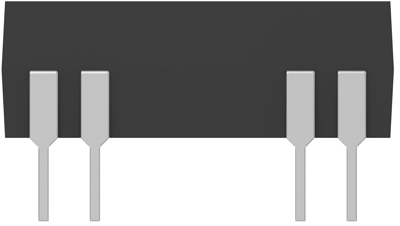

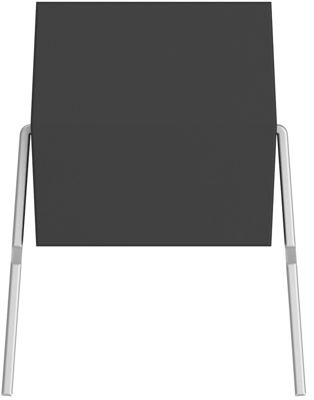

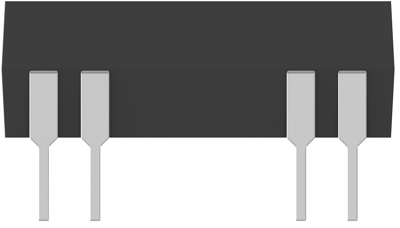

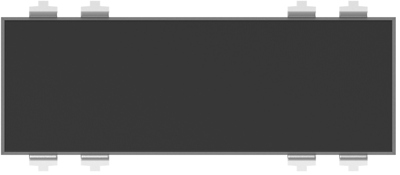

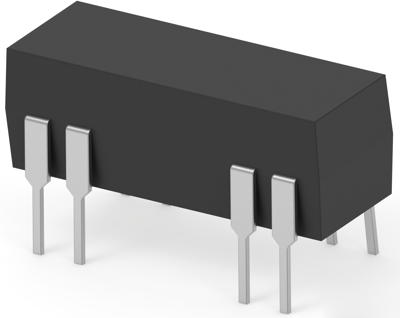

Reed relay, 1-1393771-1, Potter & Brumfield
Signal relay, 20 VDC Contact Voltage, 72 mW/50 mW Coil Power (DC), Printed circuit board, PCB-THT.
Features
- Low cost, dry reed reliability with various contact arrangements
- Wave solderable and immersion cleanable molded epoxy package
Applications
- Telecommunication
- Measurement and control
- Automated test equipment
- Security system
- Medical equipment
Technical specifications
| Connection | PCB pin | |
| Contact type | 1 Form B (N/C) | |
| Contact material | Ru | |
| Switching Voltage (DC) | 100 V | |
| switching current | 0.5 A | |
| Coil voltage (DC) | 6 V | |
| Coil type | monostable | |
| Coil resistance | 500 Ω |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
