1393128-5 | Potter & Brumfield
Relay, 1 Form C (NO/NC), 120 V (AC), 290 Ω, 25 A, 50 V (DC), 277 V (AC), monostable, 1393128-5
Order No.: 71P1967
MPN:
1393128-5
Unit Price (€ / pc.)
79.5158 € *
Available: 0 pcs.
Available in 5 Days: 40 pcs.
Leadtime: 18 Weeks **
Total Price:
79.52 € *
Price list
Quantity
Price per unit*
2 pcs.
79.5158 €
7 pcs.
68.6154 €
*incl. VAT plus shipping costs
**Subject to prior sale

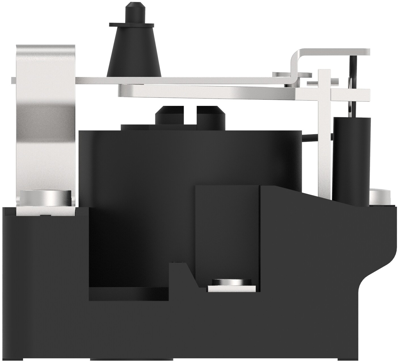

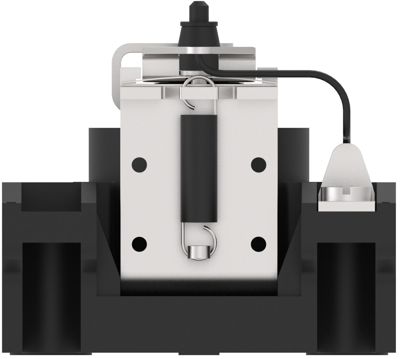

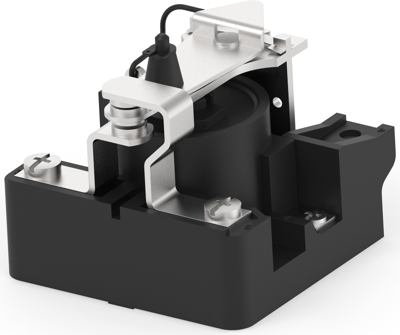

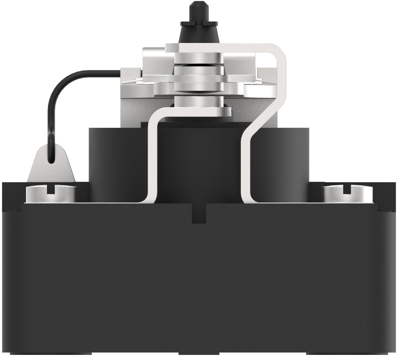

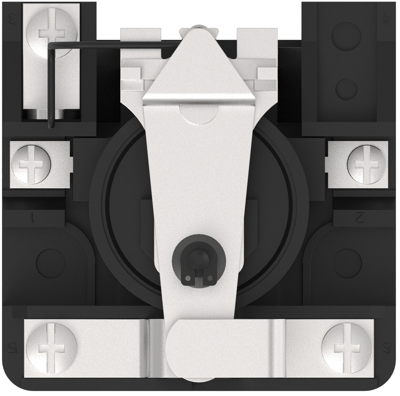

Power relay, 1393128-5, Potter & Brumfield
Power relay, Standard, Monostable, AC, 9.8 VA Coil Power Rating AC, 290 Ω Coil Resistance, UL Coil Insulation Class B, 120 VAC Coil Voltage.
Applications
- Industrial Control
- Lighting
Technical specifications
| Connection | screw connection | |
| Contact type | 1 Form C (NO/NC) | |
| Contact material | AG | |
| Switching Voltage (AC) | 277 V | |
| Switching Voltage (DC) | 50 V | |
| switching current | 25 A | |
| Coil voltage (AC) | 120 V | |
| Coil type | monostable | |
| Coil resistance | 290 Ω |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
