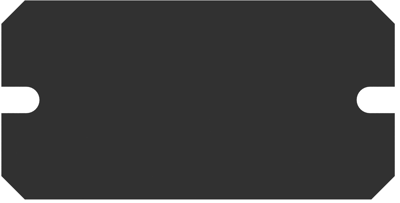

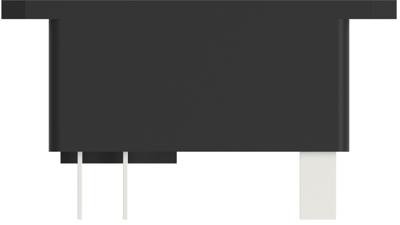

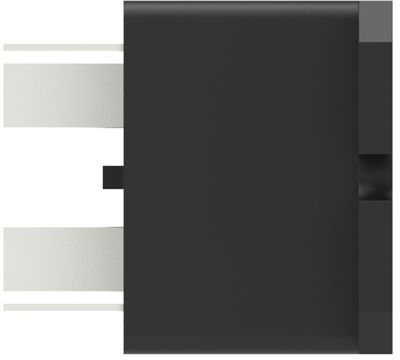

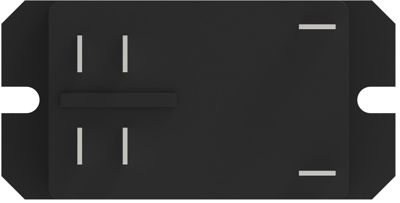

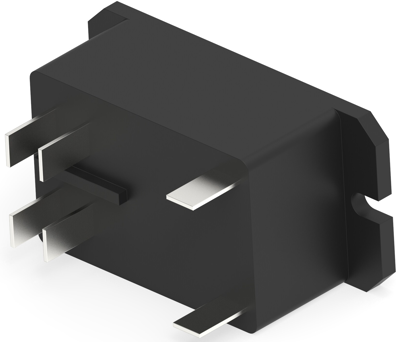

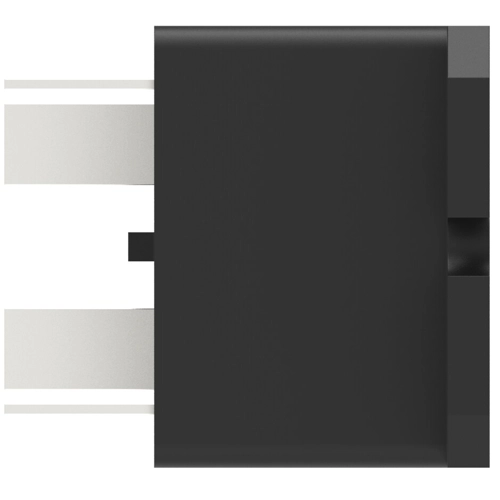

1393212-4 | Potter & Brumfield
Relay, 2 Form A (N/O), 24 V (AC), 366 Ω, 30 A, 600 V (AC), monostable, 1393212-4
Unit Price (€ / pc.)
33.2367 € *
Available: 0 pcs.
Available in 5 Days: 20 pcs.
Leadtime: 26 Weeks **
Total Price:
199.42 € *
Price list
Quantity
Price per unit*
6 pcs.
33.2367 €
15 pcs.
29.0003 €
*incl. VAT plus shipping costs
**Subject to prior sale
Power relay, 1393212-4, Potter & Brumfield
Power relay, Standard, Monostable, AC, 4000 mW Coil Power Rating DC, 36.6 Ω Coil Resistance, UL Coil Insulation Class F.
Features
- Designed to control compressor loads
- Printed circuit board mount
- Wash-tight, tape sealed, plastic case
- Meets requirements of UL Class F construction
Applications
- Residential / commercial appliances
- Industrial Control
- Charging
- HVAC
Technical specifications
| Connection | Steckanschluss | |
| Contact type | 2 Schließer | |
| Contact material | AgCdO | |
| Switching Voltage (AC) | 600 V | |
| switching current | 30 A | |
| Coil voltage (AC) | 24 V | |
| Coil type | monostabil | |
| Coil resistance | 366 Ω |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85364110 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Cadmiumoxid |
