1558661-7 | Potter & Brumfield
Relay, 1 Form A (N/O), 24 V (DC), 640 Ω, 30 A, 480 V (AC), monostable, 1558661-7
Unit Price (€ / pc.)
2.6775 € *
Available: 0 pcs.
Available in 5 Days: 174 pcs.
Leadtime: 17 Weeks **
Total Price:
2.68 € *
Price list
Quantity
Price per unit*
40 pcs.
2.6775 €
200 pcs.
2.6418 €
*incl. VAT plus shipping costs
**Subject to prior sale

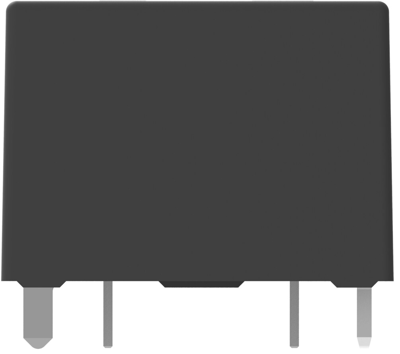

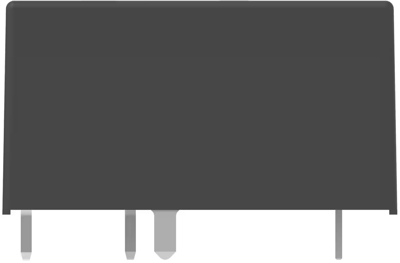

Power relay, 1558661-7, Potter & Brumfield
The 1558661-7 is a versatile relay that can be used globally and through it's PCB and quick connect terminations, it is user-friendly and easy to install. This product helps provide operator safety through increased insulation and saves PCB space with the smallest relay in it's class while maintaining standard footprint.
Applications
- Energy management
- Industrial controls
- Appliances
- HVAC
Technical specifications
| Connection | PCB pin | |
| Contact type | 1 Form A (N/O) | |
| Contact material | AgSnO | |
| Switching Voltage (AC) | 480 V | |
| switching current | 30 A | |
| Coil voltage (DC) | 24 V | |
| Coil type | monostable | |
| Coil resistance | 640 Ω |
Download
Logistics
| Country of origin | PT |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
