3-1393127-8 | Potter & Brumfield
Relay, 2 Form C (NO/NC), 24 V (DC), 288 Ω, 30 A, 28 V (DC), 240 V (AC), monostable, 3-1393127-8
Order No.: 71P7315
EAN: 4099891593209
MPN:
3-1393127-8
Unit Price (€ / pc.)
64.4504 € *
Available: 0 pcs.
Available in 5 Days: 28 pcs.
Leadtime: 18 Weeks **
Total Price:
64.45 € *
Price list
Quantity
Price per unit*
2 pcs.
64.4504 €
7 pcs.
63.2485 €
*incl. VAT plus shipping costs
**Subject to prior sale

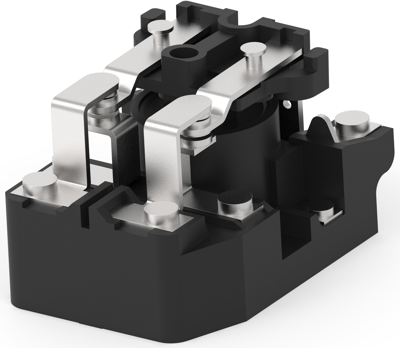

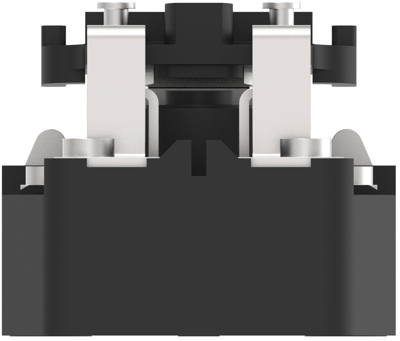

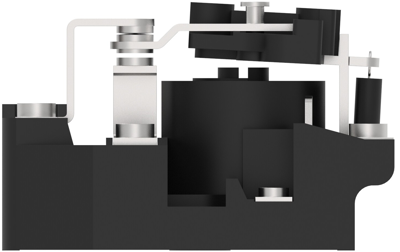

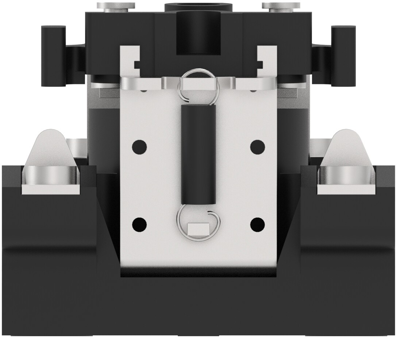

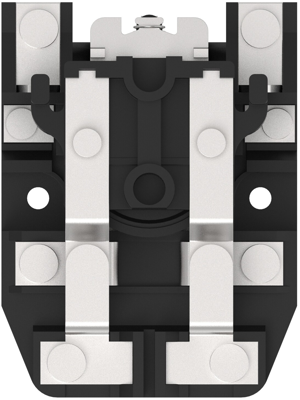

Power relay, 3-1393127-8, Potter & Brumfield
Power relay, Standard, Monostable, DC, 2000 mW Coil power rating DC, 288 Ω Coil resistance, UL Coil insulation class B, 24 VDC Coil voltage.
Features
- Contact ratings to 50A
Applications
- Industrial control
- Lighting
Technical specifications
| Connection | screw connection | |
| Contact type | 2 Form C (NO/NC) | |
| Contact material | AgCdO | |
| Switching Voltage (AC) | 240 V | |
| Switching Voltage (DC) | 28 V | |
| switching current | 30 A | |
| Coil voltage (DC) | 24 V | |
| Coil type | monostable | |
| Coil resistance | 288 Ω |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | No |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Cadmium oxide |
