5-1393211-7 | Potter & Brumfield
Relay, 2 Form A (N/O), 120 V (AC), 950 Ω, 30 A, 600 V (AC), monostable, 5-1393211-7
Unit Price (€ / pc.)
21.4200 € *
Available: 0 pcs.
Available in 5 Days: 158 pcs.
Leadtime: 26 Weeks **
Total Price:
21.42 € *
Price list
Quantity
Price per unit*
4 pcs.
21.4200 €
21 pcs.
20.1943 €
*incl. VAT plus shipping costs
**Subject to prior sale

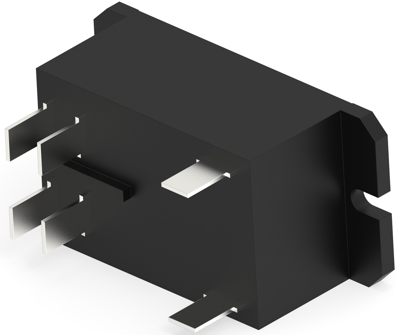

Power relay, 5-1393211-7, Potter & Brumfield
Power relay, Standard, Monostable, AC, 4000 mW Coil Power Rating DC, 950 Ω Coil Resistance, UL Coil Insulation Class F.
Features
- Designed to control compressor loads
- Printed circuit board mount
- Dust protected plastic case
- Meets requirements of UL Class F construction
Applications
- Residential / commercial appliances
- Industrial Control
- Charging
- HVAC
Technical specifications
| Anschluss | Flachstecker | |
| Kontaktart | 2 Schließer | |
| Kontaktmaterial | AgCdO | |
| Schaltspannung (AC) | 600 V | |
| Schaltstrom | 30 A | |
| Spulenspannung (AC) | 120 V | |
| Spulentyp | monostabil | |
| Spulenwiderstand | 950 Ω |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85364900 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Cadmiumoxid |
