71430-040/0800 | PREH

Plug, 4 pole, solder cup, bayonet locking, straight, 71430-040/0800

Order No.: 70F707
EAN: 4099889739749
MPN:
71430-040/0800
Series: 71430
71430-040/0800 PREH Other Circular Connectors Image 1
71430-040/0800 PREH Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
4.2364 € *
Available: 63 pcs.
Leadtime: 1 Week **
Total Price:
4.24 € *
Price list
Quantity
Price per unit*
1 pcs.
4.2364 €
10 pcs.
3.7366 €
100 pcs.
3.2844 €
250 pcs.
3.1416 €
1000 pcs.
2.9393 €
*incl. VAT plus shipping costs
**Subject to prior sale

DIN audio plugs with bayonet lock, type PREH 71.

Metal version, with black cable bushing; Operating voltage: 34 V. Continuous current: 3.0 A. Useful life: 500 insertion/removal cycles.

Technical attributes (type, number of poles, version): 71430-040, 4-pole, version B

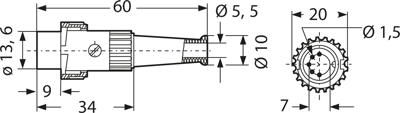

Technical specifications
Version DIN-Stecker
Additional parts bestückt
Shell Material Metall
Cable diameter 5,5 mm
Contact connection Lötkelch
contact surface verzinnt
Assembly Kabelmontage
Orientation gerade
Pin number 4-polig
Type of locking Bajonettverriegelung
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
