1007-D-0,7N-AU-0.85 C | PTR

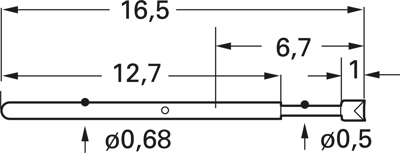

Name: Standard spring contact with probe, round head, Ø 0.68 mm, travel 2.8 mm, pitch 1.27 mm, L 16.5 mm, 1007-D-0,7N-AU-0.85 C
Brand: PTR
SKU: 12H1807
Price: 3.78 EUR
Availability: InStock

Standard spring contact with probe, round head, Ø 0.68 mm, travel 2.8 mm, pitch 1.27 mm, L 16.5 mm, 1007-D-0,7N-AU-0.85 C

Order No.: 12H1807

EAN: 4099889468359

MPN:

1007-D-0,7N-AU-0.85 C

610070017

Series: 1007

1007-D-0,7N-AU-0.85 C PTR Contact Probes

Image may differ

Key Specification:

Head shape Rundkopf

Rated current 1 A

Stroke 2.8 mm

Grid 1.27 mm

Length 16.5 mm

Show 3 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

3.7842 € *

Available: 2,693 pcs.

Leadtime: 3 Weeks **

Total Price:

3.78 € *

Price list

Quantity

Price per unit*

1 pcs.

3.7842 €

10 pcs.

3.3439 €

100 pcs.

2.9036 €

250 pcs.

2.6894 €

1000 pcs.

2.4752 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

PTR Test probes with probe tip series 1007-D-0.7N-Au-0.85

Design D: round head, for contacting PCB traces and contact surfaces. The round tip does not leave marks on the contact surface. Also used to contact socket contacts in connectors.

Tip shape: D

Tip diameter: 0.85 mm

Plunger material: steel.

Grid: 1.27 mm

Maximum travel: 2.8 mm

Working stroke: 2.4 mm

Spring force at working stroke (±20 %): 0.7 N

Spring prestress: 0.25 N

Current load capacity: 1.0 A

Contact resistance: typ. 30 mohm

Barrel: gold-plated bronze

Spring: spring steel.
