1021-CX-3.0NE-AU-2.0 C | PTR

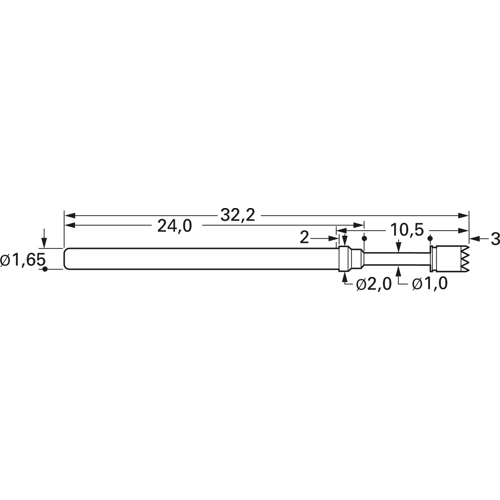

High current spring contact with probe, waffle, Ø 1.65 mm, travel 5.3 mm, pitch 2.54 mm, L 32.3 mm, 1021-CX-3.0NE-AU-2.0 C
Unit Price (€ / pc.)
8.8060 € *
Available: 52 pcs.
Leadtime: 3 Weeks **
Total Price:
8.81 € *
Price list
Quantity
Price per unit*
1 pcs.
8.8060 €
10 pcs.
7.7945 €
100 pcs.
6.7830 €
250 pcs.
6.2713 €
1000 pcs.
5.7596 €
*incl. VAT plus shipping costs
**Subject to prior sale
High-current probes with tip series 1021.
Grid: 2.54 mm. Maximum travel: 5.3 mm. Working travel: 4.0 mm. Working travel spring force (±20 %): 3.0 N. Spring prestress: 0.7 N. Rated current: 16 A. Contact resistance: typically 10 mohm. Barrel: gold-plated brass. Spring: gold-plated spring steel.
Technical attributes (type, tip shape, tip diameter, plunger material): 1021-CX-3,0 N-Au-2,0C, CX, D 2.0 mm, gold-plated CuBe.
Technical specifications
| diameter | 1.65 mm | |
| Stroke | 5.3 mm | |
| Head shape | waffle | |
| Length | 32.3 mm | |
| Material | brass | |
| Rated current | 16 A | |
| Grid | 2.54 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
