1025/E-G-2.25N-AU-1.5 | PTR

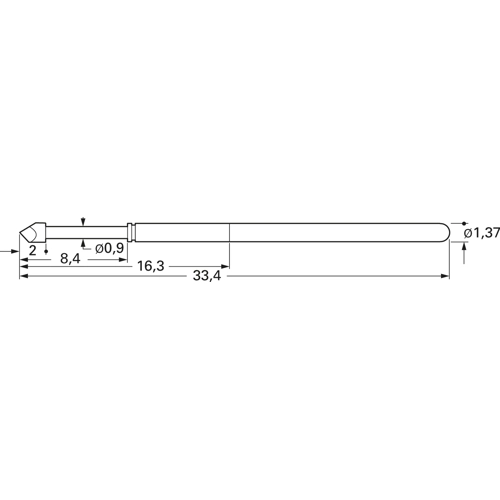

ICT spring contact with probe, round head, Ø 1.37 mm, travel 6.4 mm, pitch 2.54 mm, L 33.4 mm, 1025/E-G-2.25N-AU-1.5
Unit Price (€ / pc.)
1.4994 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
1.50 € *
Price list
Quantity
Price per unit*
1 pcs.
1.4994 €
10 pcs.
1.3209 €
100 pcs.
1.1543 €
250 pcs.
1.0710 €
1000 pcs.
0.9877 €
*incl. VAT plus shipping costs
**Subject to prior sale
ICT spring loaded contacts, type PTR 10.
Design G: four-point crown, for hookup wires, solder joints and test pads without heavy contamination.
Test probes with probe tip series 1025.
Grid: 2.54 mm. Maximum travel: 6.4 mm. Working travel: 4.3 mm. Current load: 5.0 to 8.0 A. Contact resistance: max. 20 mohm. Barrel: gold-plated bronze. Spring: gold-plated spring steel.
ICT spring force contacts, spring force at working travel 2.25 N, type 1025/E.
Spring prestress: 0.4 N.
Table index: type, tip shape, tip diameter, plunger material
1025/E-G-2,25 N-Au-1,5, G, D 1.5 mm, steel.
Technical specifications
| Head shape | Rundkopf | |
| Rated current | 8 A | |
| Stroke | 6.4 mm | |
| Grid | 2.54 mm | |
| Length | 33.4 mm | |
| diameter | 1.37 mm | |
| Material | Bronze |
Download
Logistics
| Country of origin | TN |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
