2021-B-2.25N-NI-0.8 | PTR

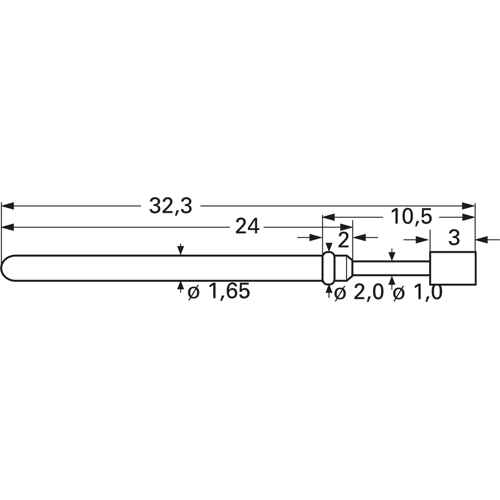

ICT spring contact with probe, cone, Ø 1.65 mm, travel 5.3 mm, pitch 2.54 mm, L 32.3 mm, 2021-B-2.25N-NI-0.8
Unit Price (€ / pc.)
2.6537 € *
Available: 48 pcs.
Leadtime: 3 Weeks **
Total Price:
2.65 € *
Price list
Quantity
Price per unit*
1 pcs.
2.6537 €
10 pcs.
2.3562 €
100 pcs.
2.0468 €
250 pcs.
1.8921 €
1000 pcs.
1.7374 €
*incl. VAT plus shipping costs
**Subject to prior sale
Test probes with probe tip series 2021.
Grid: 2.54 mm. Maximum travel: 5.3 mm. Working travel: 4.0 mm. Spring force at working stroke (±20 %): 2.25 N. Spring prestress: 0.7 N. Current load capacity: 3.0 A. Contact resistance: typ. 25 mohm. Barrel: gold-plated bronze. Spring: gold-plated spring steel.
Technical attributes (type, tip shape, tip diameter, plunger material): 2021-B-2,25 N-Ni-0,8, B, 0.8 mm, steel.
Technical specifications
| diameter | 1.65 mm | |
| Stroke | 5.3 mm | |
| Head shape | cone | |
| Length | 32.3 mm | |
| Material | bronze/brass | |
| Rated current | 8 A | |
| Grid | 2.54 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
