CS5.244 | PULS

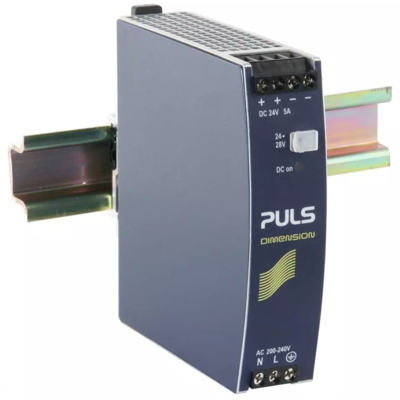

Power supply, 24 to 28 VDC, 5 A, 120 W, CS5.244
Unit Price (€ / pc.)
136.0051 € *
Available: 0 pcs.
Leadtime: On Request **
Power supplies, type PULS DIMENSION C-Serie.
Minimum inrush current and 20 % power reserve; Connection: screw terminals. Certifications: UL, CSA, IEC 60950-1.
Single-phase, 5.0 A output current, type CS5.244.
Supports series mode; Input voltage: 200 to 240 VAC (±10 %). Output ripple: 50 mVpp. MTBF: 940 kh. Operating temperatures: –10 to +70 °C. Dimensions: W 32, H 124, D 117 mm. Weight: 500 g.
Technical attributes (type, output voltage, output power, backup time 120/230/400/480 VAC, efficiency 120/230/400/480 VAC): CS5.244, 24 V, 120 W, -/78/-/- ms, -/90.2/-/- %
Technical specifications
| Anzahl der Ausgänge | 1 | |
| Ausgangsspannungsbereich | 24 bis 28 VDC | |
| Ausgangsstrom | 5 A | |
| Breite | 32 mm | |
| Eingangsspannungsbereich | 200-240 VAC | |
| Höhe | 124 mm | |
| Leistung | 120 W | |
| Schutzart (IP) | IP20 | |
| Tiefe | 117 mm | |
| Wirkungsgrad | 90.2 % |
Download
Logistics
| Ursprungsland | CZ |
| Zolltarifnummer | 85043180 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
