ML15.121 | PULS

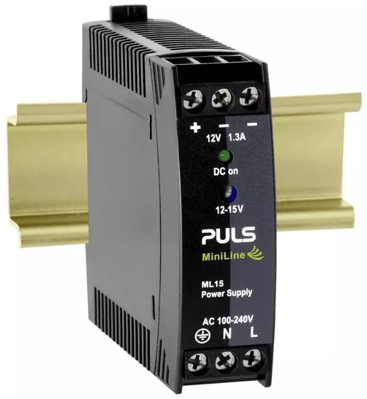

Power supply, 12 to 15 VDC, 1.3 A, 15 W, ML15.121
Unit Price (€ / pc.)
69.4365 € *
Available: 7 pcs.
Leadtime: On Request **
Total Price:
69.44 € *
Price list
Quantity
Price per unit*
1 pcs.
69.4365 €
5 pcs.
65.2596 €
15 pcs.
62.7606 €
50 pcs.
59.9879 €
150 pcs.
57.4889 €
*incl. VAT plus shipping costs
**Subject to prior sale
Power supplies, type PULS MiniLine.
In robust plastic housing; Operating temperatures: –10 to +70 °C. Certifications: CE, UL, IEC 60950-1.
Single-phase, 1.3 A output current, type ML15.121.
Supports parallel and series mode; Input voltage: 100 to 240 VAC (-15/+10 %), 110 to 300 VDC (-20/+25 %). Output ripple: 75 mVpp. Connections: screw terminals. MTBF: 3811 kh. Additional certifications: CSA. Dimensions: W 22.5, H 75, D 91 mm. Weight: 130 g.
Technical attributes (type, output voltage, output power, backup time 120/230 VAC, efficiency 120/230 VAC): ML15.121, 12 to 15 V, 15 W, 46/191 ms, 83/82.5 %
Technical specifications
| Anzahl der Ausgänge | 1 | |
| Ausgangsspannungsbereich | 12 bis 15 VDC | |
| Ausgangsstrom | 1.3 A | |
| Breite | 23 mm | |
| Eingangsspannungsbereich | 100-240 VAC, 110-300 VDC | |
| Höhe | 75 mm | |
| Leistung | 15 W | |
| Schutzart (IP) | IP20 | |
| Tiefe | 91 mm | |
| Wirkungsgrad | 82.5 % |
Download
Logistics
| Ursprungsland | CZ |
| Zolltarifnummer | 85043180 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
