PA2756NL | Pulse Electronics GmbH

Common mode choke, SMD, 484 µH, 8 A, PA2756NL

Order No.: 85D317
EAN: 4099889047790
MPN:
PA2756NL
IND,CM,483.7 UH, 8A,LCCI-5 NPB
Series: PA27
Pulse Electronics GmbH
PA2756NL Pulse Electronics GmbH Fixed Inductors

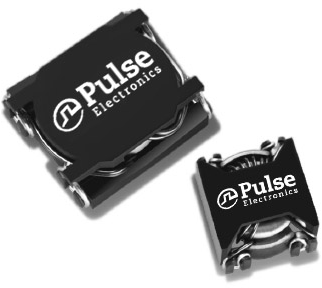

Image may differ
Unit Price (€ / pc.)
1.4518 € *
Available: 0 pcs.
Leadtime: 17 Weeks **
Total Price:
1.45 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1590 pcs.
1.4518 €

Common mode choke, PA2756NL, PULSE

The PA2756NL is a common mode choke, where both line and neutral windings are wound on a single core. When using a current compensated choke to decrease common mode noise, (the interference pattern or the unwanted noise) you want to have a high impedance at the unwanted frequencies to knock down that unwanted noise.

Features

  • Dielectric strength 1500 Vrms
  • Current Rating 0.5 Arms to 20 Arms
Technical specifications
Version common mode choke
Design SMD
Width 17 mm
DC current 8 A
DC resistance 7.7 mΩ
Height 9.9 mm
Inductance 484 µH
Length 19.6 mm
Measuring frequency 2.5 MHz
Tolerance ±35 %
Logistics
Country of origin CN
Customs tariff number 85045000
Original Packaging Tray with 30 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
