2011C397 | QUADRIOS
Butt connector assortment, heat shrink insulation, 0.3 mm² to 6.0 mm², 340 pieces, 2011C397
Order No.: 30F150
EAN: 4260573968909
MPN:
2011C397
Unit Price (€ / pc.)
31.6540 € *
Available: 6 pcs.
Leadtime: 2 Weeks **
Total Price:
31.65 € *
Price list
Quantity
Price per unit*
1 pcs.
31.6540 €
10 pcs.
29.9047 €
*incl. VAT plus shipping costs
**Subject to prior sale

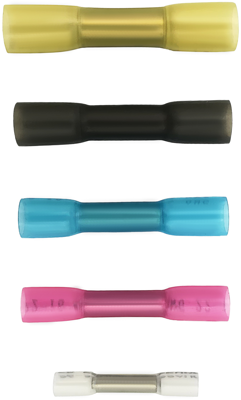

Butt connector kit with heat shrink insulation, 2011C397, QUADRIOS
The hot-melt inner adhesive provides a waterproof seal when properly overlapped. Optimal for repairing or connecting cables and conductors, service, manufacturing or hobby. Crimp with crimping pliers and then activate the heat shrink tubing in the respective temperature range - ideally with a heat gun. Shrink ratio: 3:1, temperature range: -55 to +125 °C.

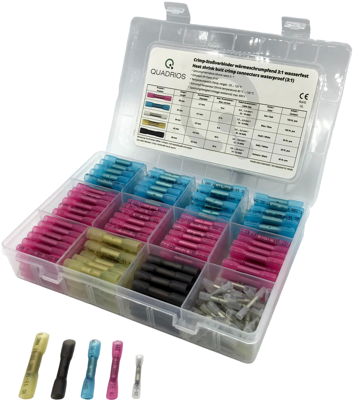

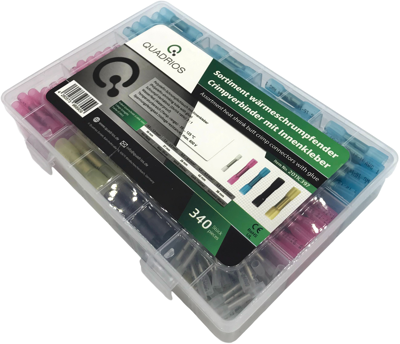

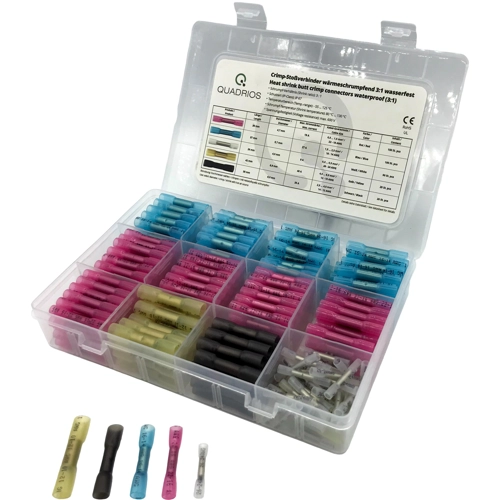

Scope of delivery:
- 150 pcs, red, 0.5-1.5 mm², AWG 22-16, 19 A, Ø 4.7 mm
- 100 pcs, blue, 1.5-2.5 mm², AWG 16-14, 27 A, Ø 5.7 mm
- 20 pcs, yellow, 4-6 mm², AWG 12-10, 48 A, Ø 6.9 mm
- 50 pcs, white, 0.3-0.5 mm², AWG 26-24, 9 A, Ø 4 mm
- 20 pcs, black, 2.5 -4 mm², AWG 14-12, 35 A, Ø 6 mm
Technical specifications
| Anzahl der Einzelteile | 340 | |
| Ausführung | Wärmeschrumpfisolierung, 0,3 mm² bis 6,0 mm² | |
| Produkt-Art | Stoßverbinder-Sortiment | |
| Lieferung inkl. Werkzeug | No |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
