22CW002 | QUADRIOS
PVC-stranded wires kit, halogen free, 0.25 mm², black/white/red/blue/brown/gray/green/yellow/orange/purple, outer Ø 1.2 mm, 22CW002
Order No.: 92F858
EAN: 4260732280361
MPN:
22CW002
Unit Price (€ / pc.)
23.0741 € *
Available: 9 pcs.
Leadtime: On Request **
Total Price:
23.07 € *
Price list
Quantity
Price per unit*
1 pcs.
23.0741 €
10 pcs.
21.2058 €
*incl. VAT plus shipping costs
**Subject to prior sale
PVC-stranded wires kit, 22CW002, QUADRIOS

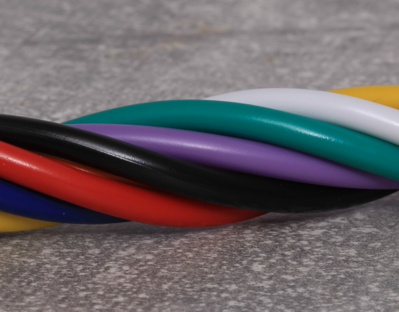

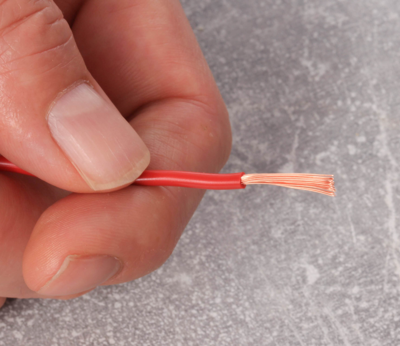

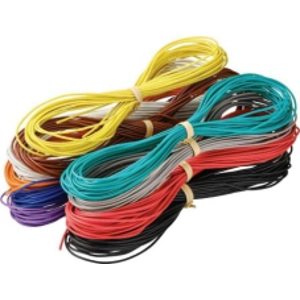

The stranded wire assortment includes ten flexible copper strands in a bag. This means that everything is clearly arranged and tidy - and therefore easy to handle. The colored PVC sheathing covers the copper braiding and ensures high dielectric strength as well as differentiation of the cores.
Technical specifications
| Core insulation material | PVC | |
| Outer diameter | 1.2 mm | |
| Colour | black/white/red/blue/brown/gray/green/yellow/orange/purple | |
| Halogen free | Yes | |
| Cable structure | 8 x 0.2 mm | |
| Cable material | copper | |
| Cable cross-section | 0.25 mm² | |
| Material | PVC | |
| Rated voltage | 230 V | |
| Temperature range (active) | -30°C to 70 °C |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
