3 S 20-10 | QUICK-OHM

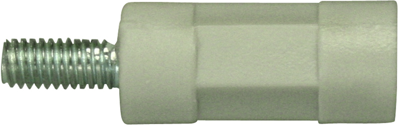

Round / hexagonal spacer bolt, External/Internal Thread, M3/M3, 20 mm, PS, 3 S 20-10
Order No.: 18H3852
EAN: 4099889493856
MPN:
3 S 20-10
Unit Price (€ / pc.)
1.7136 € *
Available: 116 pcs.
Leadtime: 2 Weeks **
Total Price:
1.71 € *
Price list
Quantity
Price per unit*
1 pcs.
1.7136 €
10 pcs.
1.5589 €
100 pcs.
1.4399 €
500 pcs.
1.3209 €
1000 pcs.
1.2376 €
*incl. VAT plus shipping costs
**Subject to prior sale
Plastic spacer bolts, type Quick-Ohm 3S../4S.
Round, with 7.0 mm hexagon head in the center and insulated threads, one end threaded pin, opposing end threaded bushing
Spacer bolts, M 3 thread (W 6 mm), type S3.

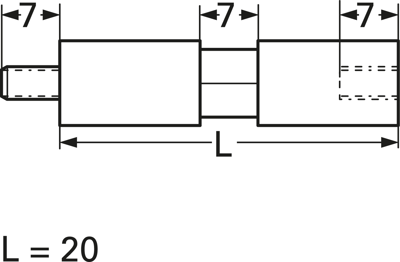

Technical specifications
| Version | External/Internal Thread | |
| Outer diameter | 3 mm | |
| External thread length | 7 mm | |
| Design | Round/Hexagonal | |
| Bolt length | 20 mm | |
| Thread size | M3/M3 | |
| Inner diameter | 3 mm | |
| Internal thread length | 7 mm | |
| Length | 27 mm | |
| Material | PS | |
| spanner size | 6 mm |
Download
Logistics
| Country of origin | NL |
| Customs tariff number | 73181535 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
