4 S 30 | QUICK-OHM

Round / hexagonal spacer bolt, External/Internal Thread, M4/M4, 30 mm, PS, 4 S 30

Order No.: 18H3870
EAN: 4099889493924
MPN:
4 S 30
QUICK-OHM
4 S 30 QUICK-OHM Spacer Bolts Image 1
4 S 30 QUICK-OHM Spacer Bolts Image 2
Image may differ
Unit Price (€ / pc.)
1.7493 € *
Available: 123 pcs.
Leadtime: 3 Weeks **
Total Price:
1.75 € *
Price list
Quantity
Price per unit*
1 pcs.
1.7493 €
10 pcs.
1.5946 €
100 pcs.
1.4756 €
500 pcs.
1.3566 €
1000 pcs.
1.2733 €
*incl. VAT plus shipping costs
**Subject to prior sale

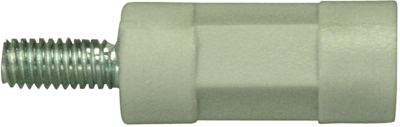

Plastic spacer bolts, type Quick-Ohm 3S../4S.

Round, with 7.0 mm hexagon head in the center and insulated threads, one end threaded pin, opposing end threaded bushing

Spacer bolts, M 4 thread (W 9 mm), type S4.

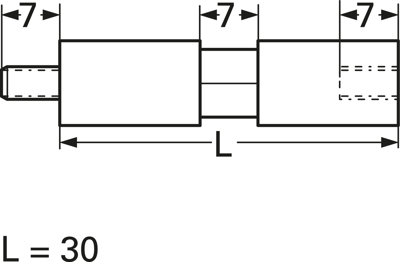

Technical specifications
Version External/Internal Thread
Outer diameter 4 mm
External thread length 7 mm
Design Round/Hexagonal
Bolt length 30 mm
Thread size M4/M4
Inner diameter 4 mm
Internal thread length 7 mm
Length 37 mm
Material PS
spanner size 9 mm
Logistics
Country of origin NL
Customs tariff number 73181535
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
