913-HP | Rademacher
Lab board, 100 x 160 mm, pitch 2.54 mm, single sided, FR2 hard paper, Cu 35 µm, 913-HP
Order No.: 10H7802
EAN: 4099889462456
MPN:
913-HP
Experim.karte Hp. 100 x 160 mm
Unit Price (€ / pc.)
4.6410 € *
Available: 48 pcs.
Leadtime: On Request **
Total Price:
4.64 € *
Price list
Quantity
Price per unit*
1 pcs.
4.6410 €
25 pcs.
4.2483 €
50 pcs.
3.8318 €
100 pcs.
3.5343 €
500 pcs.
3.2368 €
*incl. VAT plus shipping costs
**Subject to prior sale

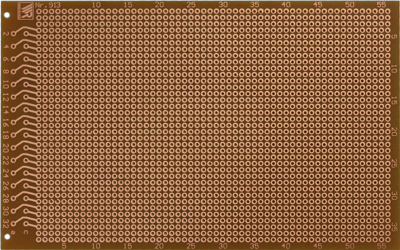

Printed circuit board, 913-HP, Rademacher
Single-sided laboratory card that can be used for laboratory applications as well as for IHK training and test applications (type 913 for electronic technicians, industrial equipment technology, type 914 for electronic technicians, plant technology), with optional socket strip connection and mounting holes for 32-pole male connectors to DIN 41612 design D; Socket strip grid: 5.08 mm. Format: 100 x 160 mm. Substrate: laminated paper or epoxy resin. Grid: 2.54 mm. Hole rows/PCB traces: 37. Holes: 1.0 mm. Copper plating: 35 µm. Board thickness: 1.5 mm. Type 914 with position labeling on the back side.
Technical attributes (type, format, substrate): 913 HP, 100 x 160 mm, laminated paper.
Technical specifications
| Version | lab board | |
| Width | 160 mm | |
| Throughplated | No | |
| One / two-sided | single sided | |
| Height | 1.5 mm | |
| copper strength | 35 m | |
| Length | 100 mm | |
| Hole diameter | 1 mm | |
| Material | FR2 hard paper | |
| Surface type | organic surface protection (OSP) | |
| Grid | 2.54 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85340011 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
