931-HP | Rademacher

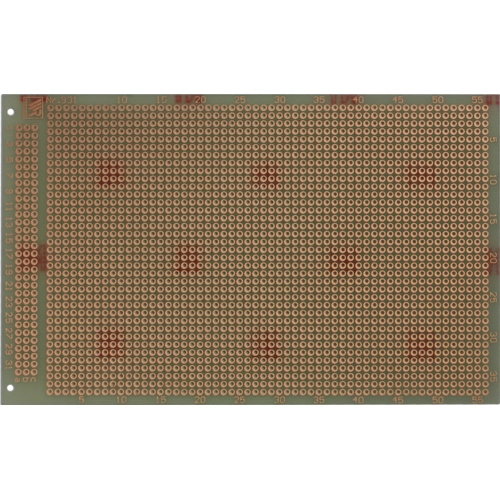

Circuit board, 100 x 160 mm, pitch 2.54 mm, single sided, FR2 hard paper, Cu 35 µm, 931-HP
Order No.: 10H7812
EAN: 4099889462500
MPN:
931-HP
Experim.karte Hp. 100 x 160 mm
Unit Price (€ / pc.)
4.6410 € *
Available: 7 pcs.
Leadtime: On Request **
Total Price:
4.64 € *
Price list
Quantity
Price per unit*
1 pcs.
4.6410 €
25 pcs.
4.2483 €
50 pcs.
3.8318 €
100 pcs.
3.5343 €
500 pcs.
3.2368 €
*incl. VAT plus shipping costs
**Subject to prior sale
Printed circuit board, 931-HP, Rademacher
Single-sided, universal prototype board that can be used for laboratory applications and for training and test applications for IHK examinations (electronic technicians, communications, information technology), with optional socket strip connection and mounting holes for 32-, 64- and 96-pole male connectors to DIN 41612; Format: 100 x 160 mm. Substrate: laminated paper or epoxy resin. Grid: 2.54 mm. Hole rows: 37. Holes: 1.0 mm. Copper plating: 35 µm. Board thickness: 1.5 mm.
Technical attributes (type, format, substrate): 931 HP, 100 x 160 mm, laminated paper.
Technical specifications
| Ausführung | Leiterplatte | |
| Breite | 160 mm | |
| Durchkontaktiert | No | |
| Ein-/Zweiseitig | einseitig | |
| Höhe | 1.5 mm | |
| Kupferstärke | 35 m | |
| Länge | 100 mm | |
| Lochdurchmesser | 1 mm | |
| Material | FR2 Hartpapier | |
| Rastermaß | 2.54 mm |
Download
Logistics
| Ursprungsland | FR |
| Zolltarifnummer | 85340090 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
