1.11.011.801/0300 | RAFI

Pushbutton, illuminable, groping, 1 Form A (N/O), waistband round, stainless steel, front ring stainless steel, mounting Ø 30.3 mm, 1.11.011.801/0300

Order No.: 12G9638
EAN: 4099889251418
MPN:
1.11.011.801/0300
Series: RAMO 30
RAFI

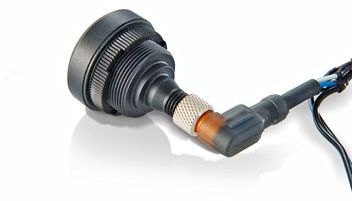

1.11.011.801/0300 RAFI Actuators, Signal Elements and Front Elements Image 1
1.11.011.801/0300 RAFI Actuators, Signal Elements and Front Elements Image 2
Image may differ
Unit Price (€ / pc.)
50.8011 € *
Available: 0 pcs.
Leadtime: 8 Weeks **
Total Price:
50.80 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
50.8011 €

Pushbutton, 1.11.011.801/0300, RAFI

By using the RAFI MICON 5 short-travel keyswitch, RAMO 30T T offers tactile feedback with a clear key click. Due to its protection class IP 66/IP69K, it is particularly recommended for plant engineering. RAMO 30 T require a mounting diameter of 30.3 mm. Contact function: 1 NO contact, actuating function: momentary, cover and front ring made of stainless steel, shape of collar: round, connection type: M12, colour of ring illumination: red.

Technical specifications
Connection M12 plug, 4 pole
Version pushbutton
Type of mounting threaded ring
can be illuminated Yes
Collar shape of the front frame round
Installation diameter 30.3 mm
Installation height 3.8 mm
Installation depth 36.4 mm
Actuator colour stainless steel
Front ring colour stainless steel
Contact function groping
Contact material gold
Latching switching function 1 Form A (N/O)
Protection class IP66/IP67/IP69K
Logistics
Country of origin HU
Customs tariff number 85365011
Original Packaging Carton with 10 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
