1.11.021.204/0220 | RAFI

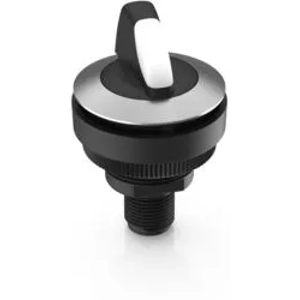

Selector switch, illuminable, latching, 1 Form A (N/O), waistband round, white/black, front ring stainless steel, 90°, mounting Ø 30.3 mm, 1.11.021.204/0220
Unit Price (€ / pc.)
71.281 € *
Available: 0 pcs.
Leadtime: 8 Weeks **
Selector switch, 1.11.021.204/0220, RAFI
Selector switch with various switching positions and M12 terminal
FEATURES
- Precise haptics
- Safe gold contacts
- Simple M12 plug connection
- Protected contacts due to sealed housing
Technical Data
- Type of mounting: Threaded ring
- Collar shape: round
- Installation diameter: 30.3 mm
- Installation depth: 36.2 mm
- Installation height: 17.6 mm
- Switching current, max.: 100 mA
- Switching voltage, max: 32 V
Technical specifications
| Anschluss | M12 Stecker, 4-polig | |
| Ausführung | Wahlschalter | |
| Befestigungsart | Gewindering | |
| Beleuchtbar | Yes | |
| Bundform | rund | |
| Drehwinkel | 90° | |
| Einbaudurchmesser | 30.3 mm | |
| Einbauhöhe | 17.6 mm | |
| Einbautiefe | 36.2 mm | |
| Farbe Betätiger | weiß/schwarz | |
| Farbe Frontring | Edelstahl | |
| Kontaktfunktion | rastend | |
| Kontaktmaterial | gold | |
| Schaltfunktion | 1 Schließer | |
| Schutzart (Betätigungsseite) | IP65 |
Download
Logistics
| Zolltarifnummer | 85365080 |
| Originalverpackung | Karton mit 2 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
