1.30.070.021/1306 | RAFI

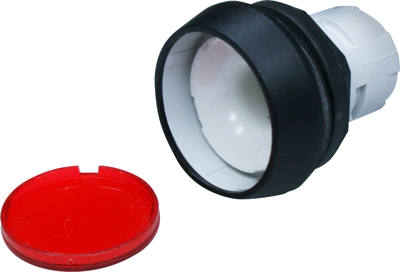

Name: Pushbutton, illuminable, groping, waistband round, red, front ring black, mounting Ø 16.2 mm, 1.30.070.021/1306
Brand: RAFI
SKU: 12G6435
Price: 9.66 EUR
Availability: InStock

Pushbutton, illuminable, groping, waistband round, red, front ring black, mounting Ø 16.2 mm, 1.30.070.021/1306

Order No.: 12G6435

EAN: 4099889247343

MPN:

1.30.070.021/1306

Series: RAFIX 16

Image may differ

Key Specification:

Version pushbutton

Contact function groping

Collar shape of the front frame round

can be illuminated Yes

Show 6 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

9.6628 € *

Available: 103 pcs.

Leadtime: 6 Weeks **

Total Price:

9.66 € *

Price list

Quantity

Price per unit*

1 pcs.

9.6628 €

10 pcs.

8.4966 €

50 pcs.

7.9373 €

150 pcs.

7.5684 €

500 pcs.

7.1876 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Pushbutton with flush lens and round collar, series RAFIX 16

type: 1.30.070.021/1306

Function: depends on the contact block, design 2: slightly chamfered, illuminated, lens Color red.

Technical specifications

	Version	pushbutton
	Type of mounting	threaded ring
	can be illuminated	Yes
	Collar shape of the front frame	round
	Installation diameter	16.2 mm
	Installation height	7.15 mm
	Installation depth	44.7 mm
	Actuator colour	red
	Front ring colour	black
	Contact function	groping
	Protection class	IP65

Show similar products 0

Download

Technical Data Sheet - EN Technical Data Sheet

Declaration of Conformity - EN Declaration of Conformity

Product Change Notification - EN Product Change Notification

Technical Data Sheet - DE Technical Data Sheet

Product Change Notification - DE Product Change Notification

Declaration of Conformity - DE Declaration of Conformity

Logistics

Country of origin	HU
Customs tariff number	85365080

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	Yes
