1.30.070.021/1505 | RAFI

Name: Pushbutton, illuminable, groping, waistband round, green, front ring black, mounting Ø 16.2 mm, 1.30.070.021/1505
Brand: RAFI
SKU: 12G6437
Price: 9.66 EUR
Availability: InStock

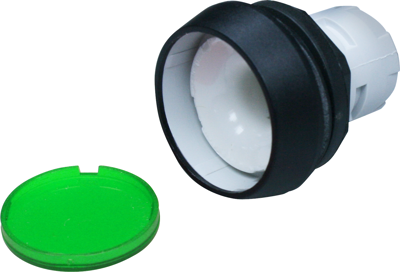

Pushbutton, illuminable, groping, waistband round, green, front ring black, mounting Ø 16.2 mm, 1.30.070.021/1505

Order No.: 12G6437

EAN: 4099889247367

MPN:

1.30.070.021/1505

Series: RAFIX 16

Image may differ

Key Specification:

Ausführung Drucktaster

Kontaktfunktion tastend

Bundform rund

Beleuchtbar Yes

Show 6 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

9.6628 € *

Available: 57 pcs.

Leadtime: 9 Weeks **

Total Price:

9.66 € *

Price list

Quantity

Price per unit*

1 pcs.

9.6628 €

10 pcs.

8.4966 €

50 pcs.

7.9373 €

150 pcs.

7.5684 €

500 pcs.

7.1876 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Pushbutton with flush lens and round collar, series RAFIX 16

type: 1.30.070.021/1505

Function: depends on the contact block, design 2: slightly chamfered, illuminated, lens Color green.

Technical specifications

	Ausführung	Drucktaster
	Befestigungsart	Gewindering
	Beleuchtbar	Yes
	Bundform	rund
	Einbaudurchmesser	16.2 mm
	Einbauhöhe	7.15 mm
	Einbautiefe	44.7 mm
	Farbe Betätiger	grün
	Farbe Frontring	schwarz
	Kontaktfunktion	tastend
	Schutzart (Betätigungsseite)	IP65

Show similar products 0

Download

Technisches Datenblatt - EN Technisches Datenblatt

Konformitätsdeklaration - EN Konformitätsdeklaration

Produktänderung - EN Produktänderung

Technisches Datenblatt - DE Technisches Datenblatt

Konformitätsdeklaration - DE Konformitätsdeklaration

Produktänderung - DE Produktänderung

Logistics

Ursprungsland	HU
Zolltarifnummer	85365080

Compliance

RoHS konform	Yes
Stand der RoHS-Richtlinie	3/31/15
SVHC frei	Yes
