1.30.070.071/1403 | RAFI

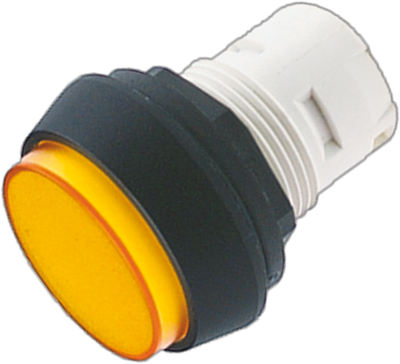

Name: Pushbutton, illuminable, groping, waistband round, yellow, front ring black, mounting Ø 16.2 mm, 1.30.070.071/1403
Brand: RAFI
SKU: 12G6460
Price: 7.13 EUR
Availability: OutOfStock

Pushbutton, illuminable, groping, waistband round, yellow, front ring black, mounting Ø 16.2 mm, 1.30.070.071/1403

Order No.: 12G6460

EAN: 4099889247442

MPN:

1.30.070.071/1403

Series: RAFIX 16

Image may differ

Key Specification:

Version pushbutton

Contact function groping

Collar shape of the front frame round

can be illuminated Yes

Show 6 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

7.1281 € *

Available: 0 pcs.

Leadtime: 4 Weeks **

Add to Cart

Total Price:

7.13 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Pushbuttons with raised lens and round collar series RAFIX 16, type 1.30.070.

Function: depends on the contact block, design 2: slightly chamfered front ring.

Illuminated, type 1.30.070.071/.

Technical attributes (type, lens color): 1.30.070.071/1403, yellow

Technical specifications

	Version	pushbutton
	Type of mounting	threaded ring
	can be illuminated	Yes
	Collar shape of the front frame	round
	Installation diameter	16.2 mm
	Installation height	9.95 mm
	Installation depth	44.7 mm
	Actuator colour	yellow
	Front ring colour	black
	Contact function	groping
	Protection class	IP65

Show similar products 0

Download

Technical Data Sheet - EN Technical Data Sheet

Declaration of Conformity - EN Declaration of Conformity

Product Change Notification - EN Product Change Notification

Technical Data Sheet - DE Technical Data Sheet

Product Change Notification - DE Product Change Notification

Declaration of Conformity - DE Declaration of Conformity

Logistics

Country of origin	HU
Customs tariff number	85365080

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	Yes
