1.30.070.251/0200 | RAFI

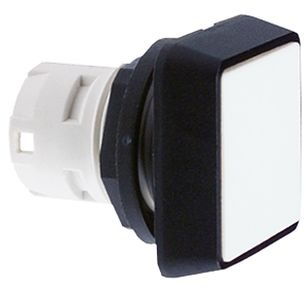

Name: Pushbutton, unlit, groping, waistband square, white, mounting Ø 16.2 mm, 1.30.070.251/0200
Brand: RAFI
SKU: 12G9553
Price: 7.20 EUR
Availability: OutOfStock

Pushbutton, unlit, groping, waistband square, white, mounting Ø 16.2 mm, 1.30.070.251/0200

Order No.: 12G9553

EAN: 4099889251128

MPN:

1.30.070.251/0200

Series: RAFIX 16

Image may differ

Key Specification:

Version pushbutton

Contact function groping

Collar shape of the front frame square

can be illuminated No

Show 12 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

7.1995 € *

Available: 0 pcs.

Leadtime: 8 Weeks **

Add to Cart

Total Price:

7.20 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Push button, 1.30.070.251/0200, RAFI

Illuminated push button, flush lens with IP65 degree of protection.

Technical specifications

	Version	pushbutton
	Type of mounting	threaded ring
	can be illuminated	No
	Collar shape of the front frame	square
	Installation diameter	16.2 mm
	Installation height	7.15 mm
	Installation depth	44.7 mm
	Actuator colour	white
	Contact function	groping
	Protection class	IP65

Show similar products 0

Download

Technical Data Sheet - EN Technical Data Sheet

Declaration of Conformity - EN Declaration of Conformity

Product Change Notification - EN Product Change Notification

Technical Data Sheet - DE Technical Data Sheet

Product Change Notification - DE Product Change Notification

Declaration of Conformity - DE Declaration of Conformity

Logistics

Country of origin	HU
Customs tariff number	85365080

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	Yes
