1.30.073.650/0200 | RAFI

Name: Selector switch, unlit, groping, waistband square, white/black, 2 x 40°, mounting Ø 16.2 mm, 1.30.073.650/0200
Brand: RAFI
SKU: 12G9488
Price: 12.03 EUR
Availability: OutOfStock

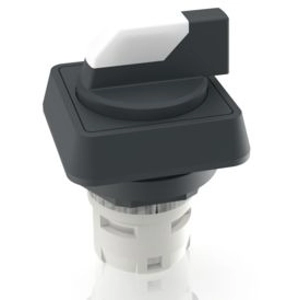

Selector switch, unlit, groping, waistband square, white/black, 2 x 40°, mounting Ø 16.2 mm, 1.30.073.650/0200

Order No.: 12G9488

EAN: 4099889250978

MPN:

1.30.073.650/0200

Series: RAFIX 16

Image may differ

Key Specification:

Version selector switch

Contact function groping

Collar shape of the front frame square

can be illuminated No

Show 9 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

12.0309 € *

Available: 0 pcs.

Leadtime: 8 Weeks **

Add to Cart

Total Price:

12.03 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Switching element, 1.30.073.650/0200, RAFI

RAFIX 16 selector switch, square collar, non-illuminated, with momentary contact function.

Technical specifications

	Version	selector switch
	Type of mounting	threaded ring
	can be illuminated	No
	Collar shape of the front frame	square
	Rotation angle	2 x 40°
	Installation diameter	16.2 mm
	Installation height	17.1 mm
	Installation depth	44.7 mm
	Actuator colour	white/black
	Contact function	groping
	Protection class	IP65

Show similar products 0

Download

Technical Data Sheet - EN Technical Data Sheet

Declaration of Conformity - EN Declaration of Conformity

Technical Data Sheet - DE Technical Data Sheet

Declaration of Conformity - DE Declaration of Conformity

Product Change Notification - DE Product Change Notification

Logistics

Country of origin	HU
Customs tariff number	85365080

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	Yes
