1.30.076.141/0000 | RAFI

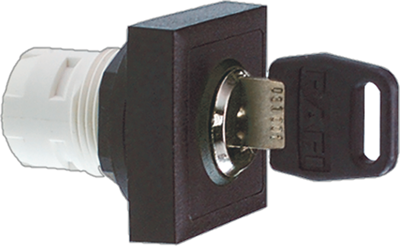

Key switch, unlit, latching, waistband square, 1 x 90°, trigger position 0, mounting Ø 16.2 mm, 1.30.076.141/0000

Order No.: 12G6499
EAN: 4099889247572
MPN:
1.30.076.141/0000
Series: RAFIX 16
RAFI
1.30.076.141/0000 RAFI Actuators, Signal Elements and Front Elements
Image may differ
Unit Price (€ / pc.)
24.1451 € *
Available: 20 pcs.
Leadtime: 6 Weeks **
Total Price:
24.15 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
24.1451 €

Keylock switches MICROMEC with square collar series RAFIX 16

type: 1.30.076.141/0000

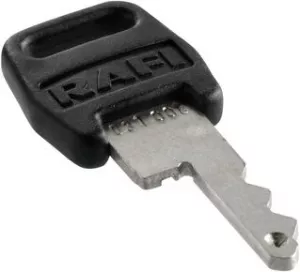

Contact action: momentary or latching, design 3: bezel with straight sides for in-line mounting in all directions without gaps between the bezels. Locking position: 001. Included in the delivery: 2 keys. Note: Always use momentary action contact blocks, for types with left/right turn functionality you should only use the universal contact block.

Table index: rotary angle, momentary action switch positions (left, center, right), key removal position (rem), contact action.

functions: V 1 x 90°, left/right, removal 0, latching

Technical specifications
Version key switch
Type of mounting threaded ring
can be illuminated No
Collar shape of the front frame square
Rotation angle 1 x 90°
Installation diameter 16.2 mm
Installation height 27.95 mm
Installation depth 44.7 mm
Contact function latching
Protection class IP65
Trigger position key 0
Logistics
Country of origin HU
Customs tariff number 85365080
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
